Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the guide clip from the door lock linkage.

Fig 1: Removing Guide Clip From Door Lock Linkage
Courtesy of FORD MOTOR CO.

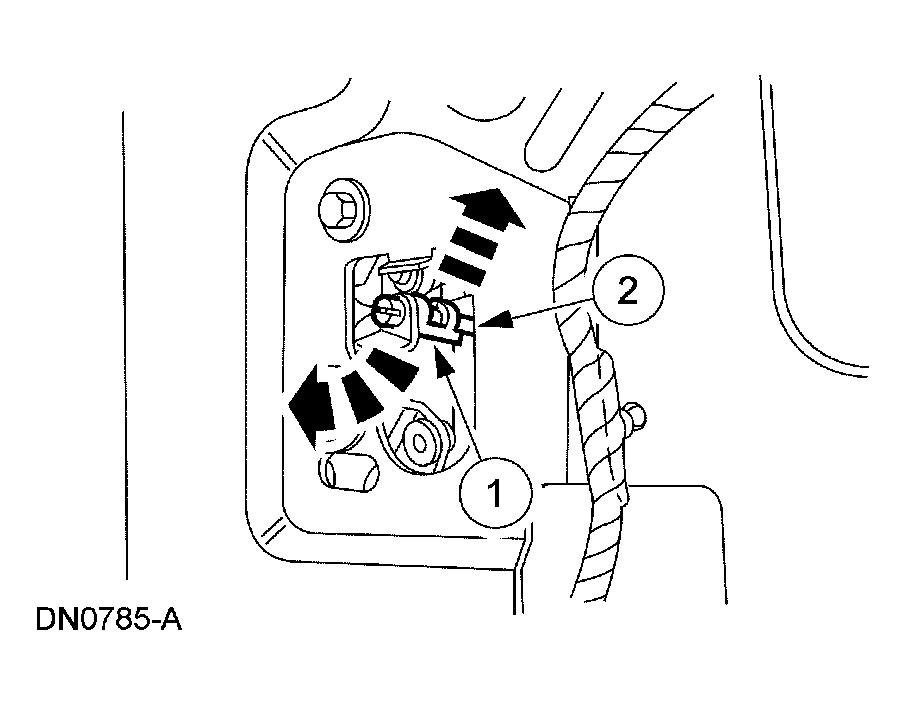

Disconnect the door lock actuator from the rear door latch.
- Open the clip.
- Release the rod.

  Fig 2: Disconnecting Door Lock Actuator From Rear Door Latch
  Courtesy of FORD MOTOR CO.
Remove the push button rod actuator from the bellcrank.
1. Open the clip.
2. Remove the rod.

  Fig 3: Removing Push Button Rod Actuator From Bellcrank
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
