Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Position the watershield aside.
Release the interior rear door handle cover.
- Release the clips.

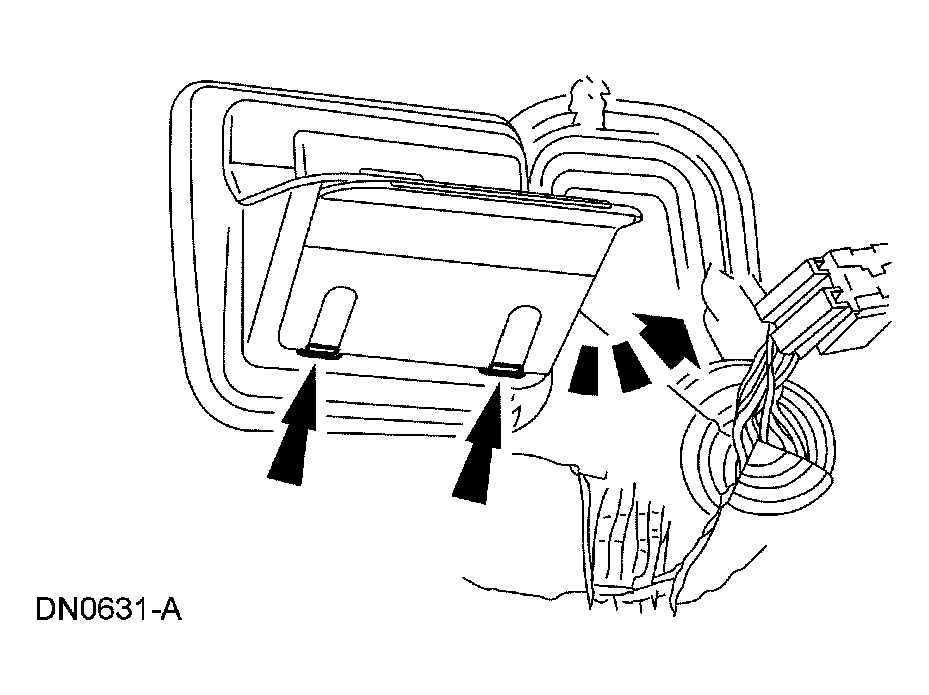

  Fig 1: Releasing Interior Rear Door Handle Cover
  Courtesy of FORD MOTOR CO.
Remove the inside door handle.
1. Remove the nuts.
2. Remove the inside door handle.

  Fig 2: Removing Inside Door Handle
  Courtesy of FORD MOTOR CO.

NOTE: If a new component is to be installed, refer to the Ford Master Parts Catalog for specific part information.

To install, reverse the removal procedure.
