Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Position the watershield aside.

NOTE: The door glass must be in the raised position to remove the exterior door handle.

Fig 1: Positioning Watershield Aside

Courtesy of FORD MOTOR CO.

Remove the plug.
Remove the exterior door handle nut.

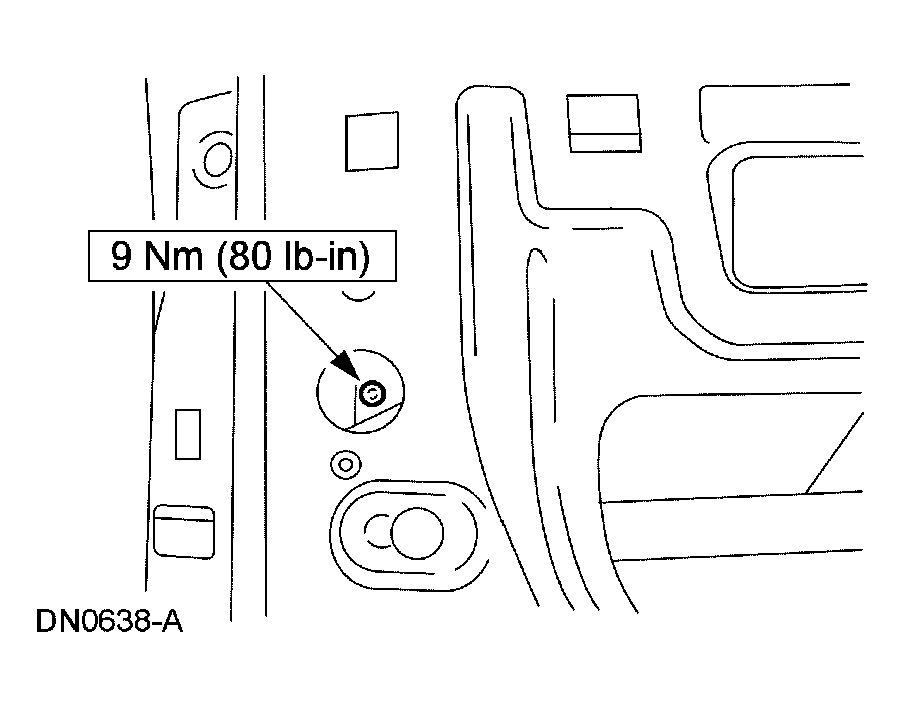

Fig 2: Removing Exterior Door Handle Nut - With Torque Specifications
Courtesy of FORD MOTOR CO.
Remove the exterior door handle nut.

Fig 3: Removing Exterior Door Handle Nut - With Torque Specifications
Courtesy of FORD MOTOR CO.
Remove the exterior rear door handle.
1. Release the clip.
2. Remove the exterior rear door handle.

  Fig 4: Removing Exterior Rear Door Handle
  Courtesy of FORD MOTOR CO.

NOTE: If a new component is to be installed, refer to the Ford Master Parts Catalog for specific part information. The clip must be completely down in the latch lever before connecting the release rod.

To install, reverse the removal procedure.
