Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Position the watershield aside.
  3. Open the clip and disconnect the actuating rod.

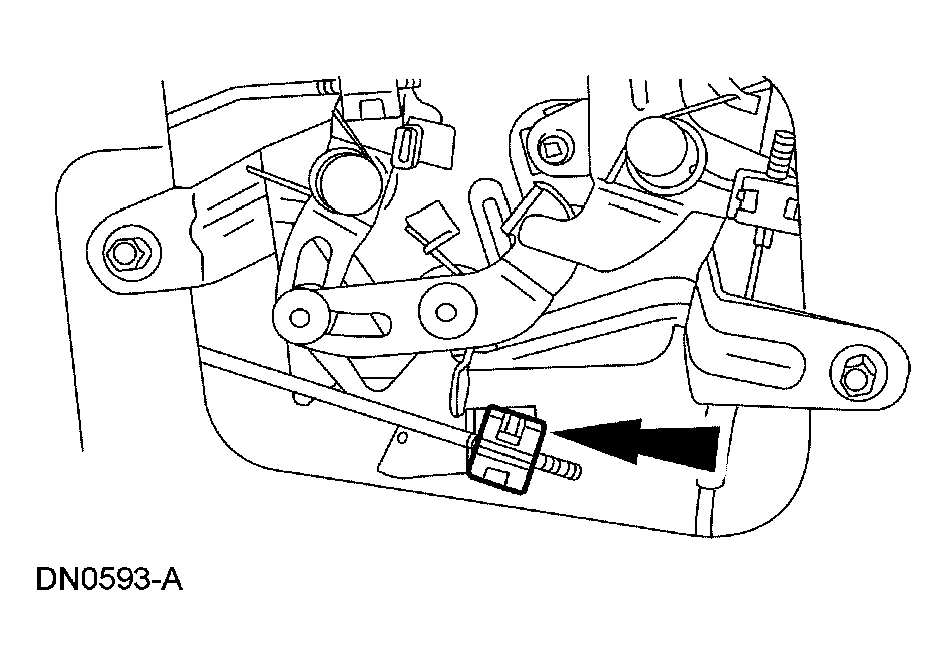

    Fig 1: Disconnecting Actuating Rod
    G03925991Courtesy of FORD MOTOR CO.
  4. Remove the exterior rear door handle. For additional information, refer to EXTERIOR REAR DOOR HANDLE - SUPERCAB  in this article.
  5. Remove the door latch remote control.
  6. To install, reverse the removal procedure.
