Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

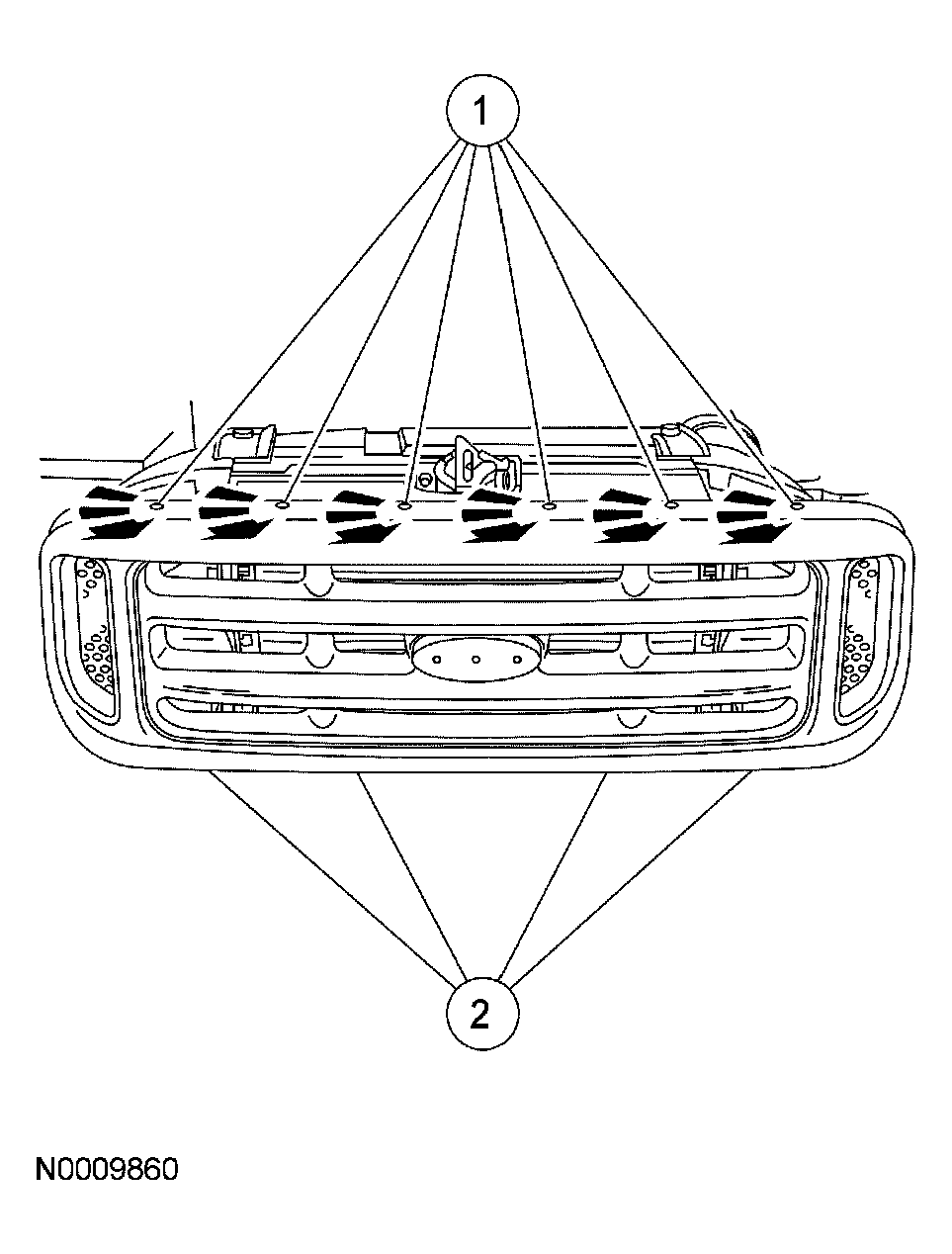

Remove the radiator grille.
1. Remove the screws.
2. Disconnect the lower clips, then remove the radiator grille.

  Fig 1: Disconnecting Lower Clips
  Courtesy of FORD MOTOR CO.
Remove the upper radiator air deflector (8326).
Remove the headlamps. For additional information, refer to EXTERIOR LIGHTING .
Remove the parking lamp assemblies. For additional information, refer to EXTERIOR LIGHTING .
Remove the left side air deflector push pin and hood latch cable clip.

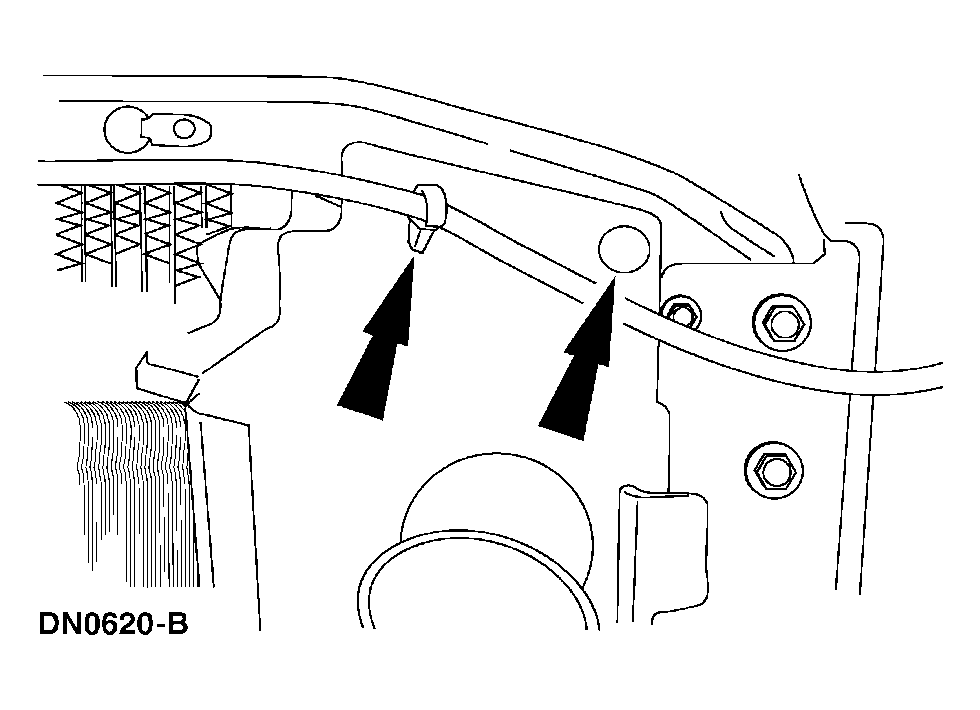

Fig 2: Removing Left Side Air Deflector Push Pin And Hood Latch Cable Clip
Courtesy of FORD MOTOR CO.
Remove the air conditioning condenser brackets.

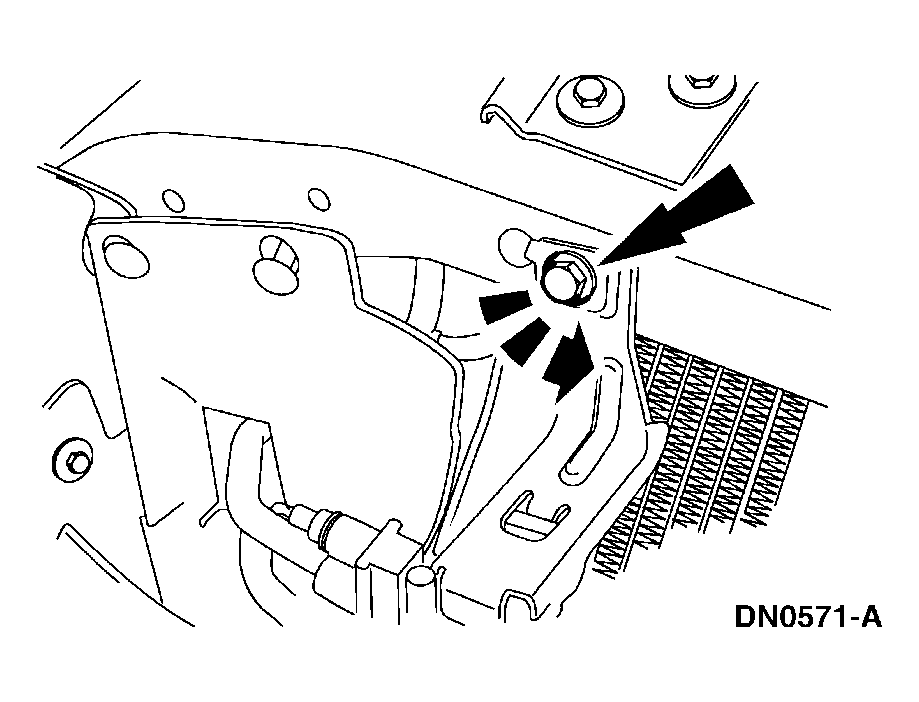

Fig 3: Removing Air Conditioning Condenser Brackets
Courtesy of FORD MOTOR CO.
Unclip the hood release cable from the radiator support.
Remove the air deflector push pins from the right rear air deflector.

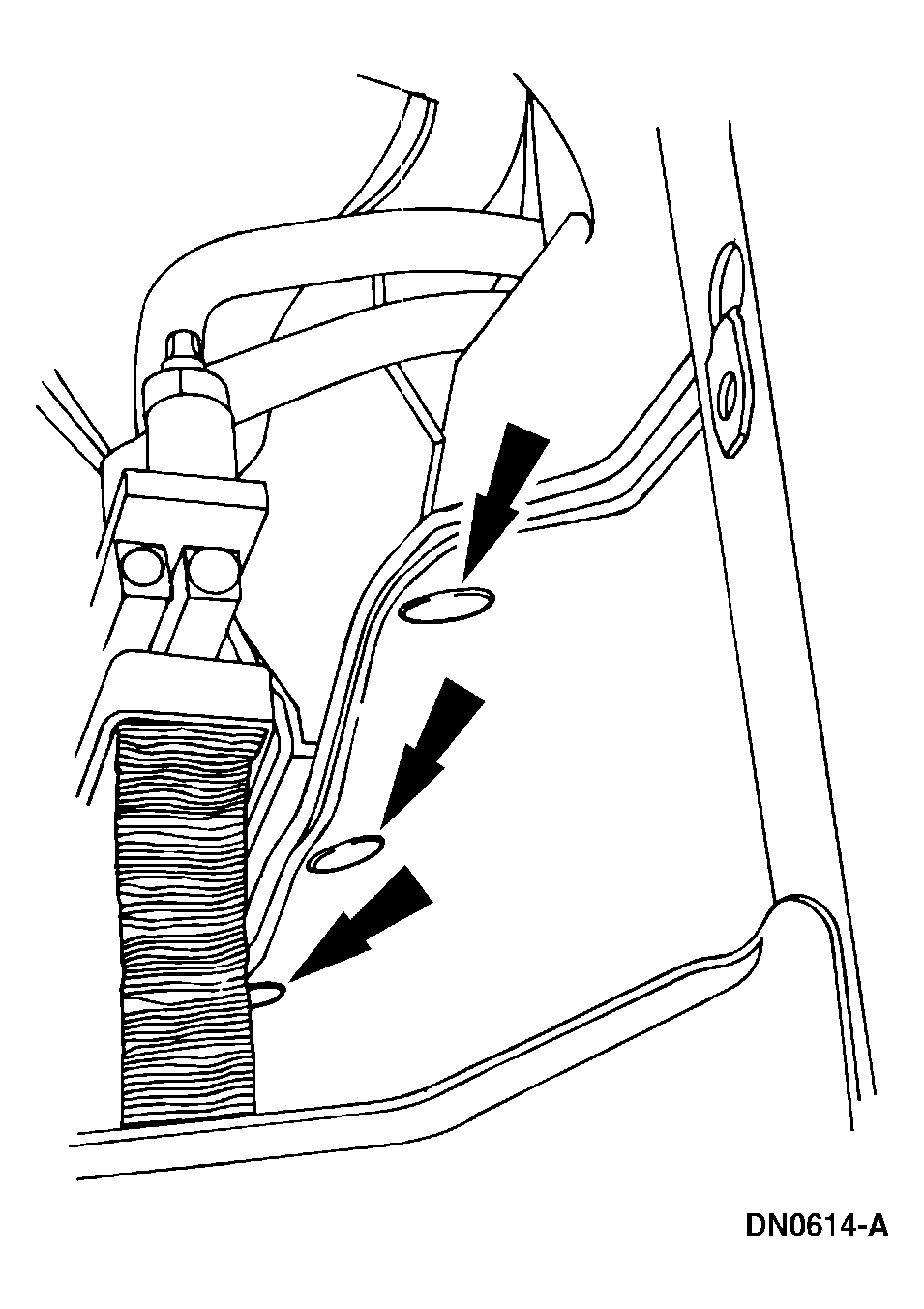

Fig 4: Removing Air Deflector Push Pins
Courtesy of FORD MOTOR CO.
Remove the air deflector push pins from the left rear air deflector.

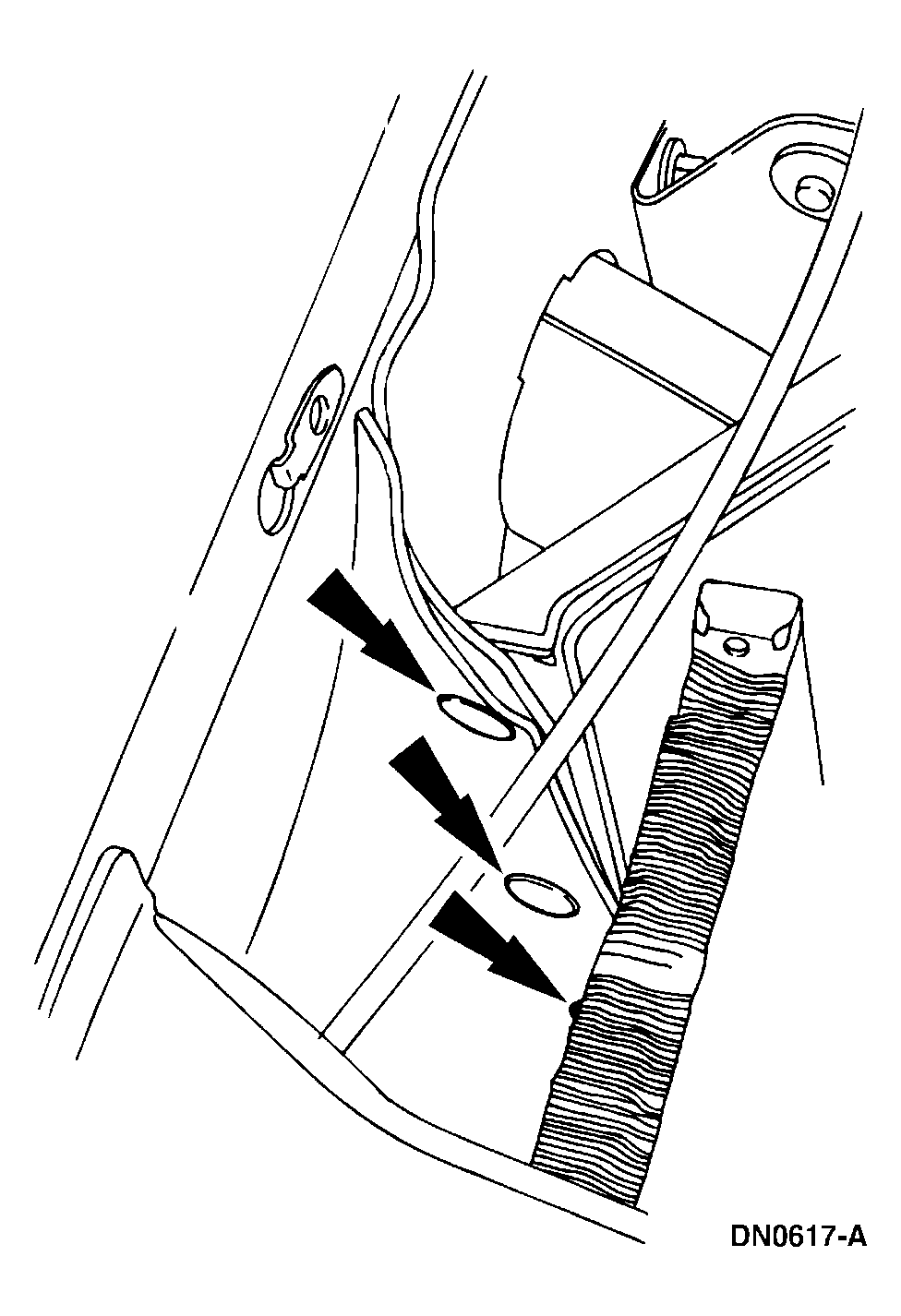

Fig 5: Removing Air Deflector Push Pins From Left Rear Air Deflector
Courtesy of FORD MOTOR CO.
Remove the three air deflector pin-type retainers and the air temperature sensor.

Fig 6: Removing Three Air Deflector Pin-Type Retainers And Air Temperature Sensor
Courtesy of FORD MOTOR CO.
Remove the radiator grille opening panel reinforcement retaining bolts.

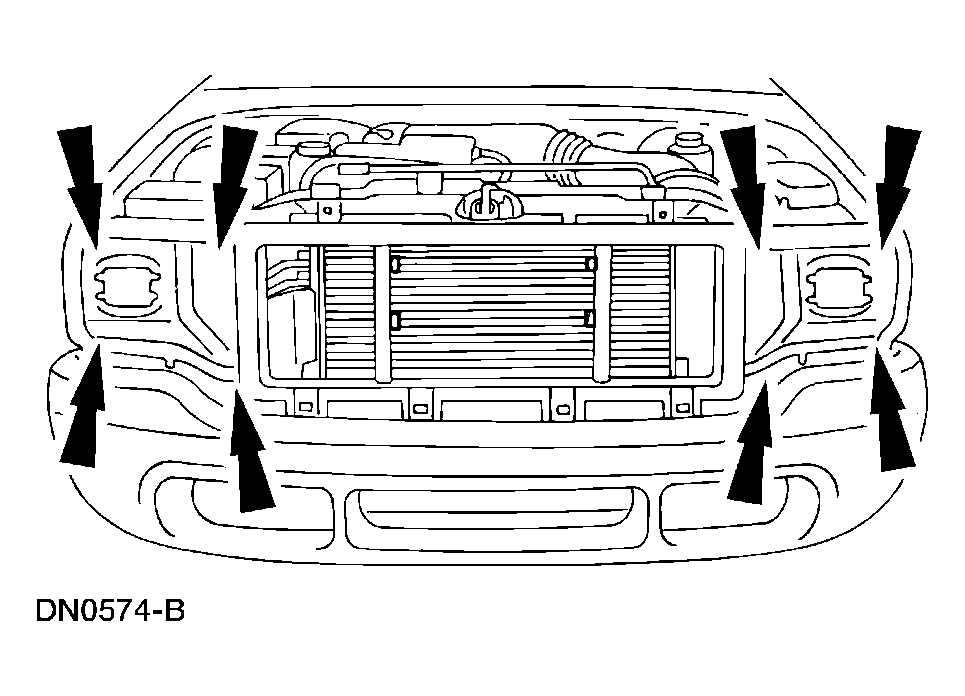

Fig 7: Removing Radiator Grille Opening Panel Reinforcement Retaining Bolts
Courtesy of FORD MOTOR CO.
Lift the air conditioning condenser, then remove the radiator grille opening panel reinforcement (8A284).
To install, reverse the removal procedure.
