Evaporative Emission Canister Purge Valve: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

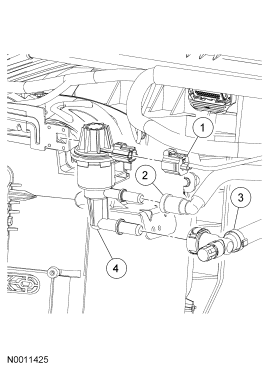

Fig 1: Identifying Evaporative Emission Canister Purge Valve

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Evaporative emission (EVAP) canister purge valve electrical connector (part of 12B637)
2	-	Fuel vapor tube quick connect fitting
3	-	Fuel vapor tube quick connect fitting
4	9G641	EVAP canister purge valve
