Removal And Installation: Horn: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

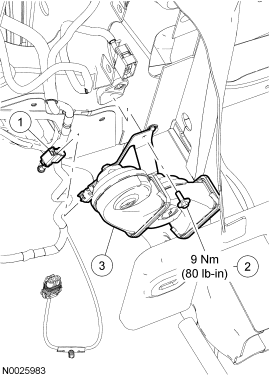

Fig 1: Identifying Horn Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Horn electrical connector (part of 12A581)
2	W709435	Horn bolt
3	13A803	Horn
