Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

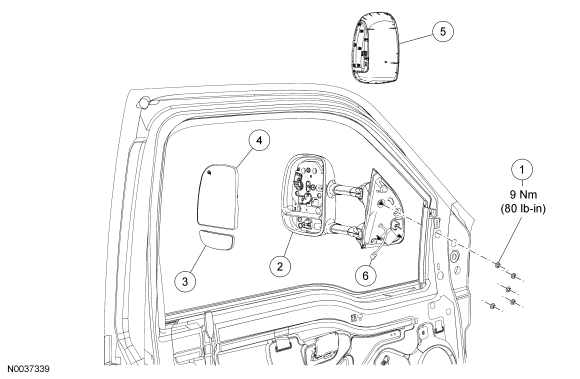

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N621906-S361 |
Exterior mirror nut (4 required) |
| 2 |
17682/17683 |
Exterior mirror assembly (RH/LH) |
| 3 |
17K707 |
Exterior mirror glass - spotter |
| 4 |
17K707 |
Exterior mirror glass |
| 5 |
17D742/17D743 |
Exterior mirror cover (RH/LH) |
| 6 |
14A005 (Early build)/ 14631 (LH Late build)/ 14630 (RH Late build) |
Exterior mirror electrical connector |

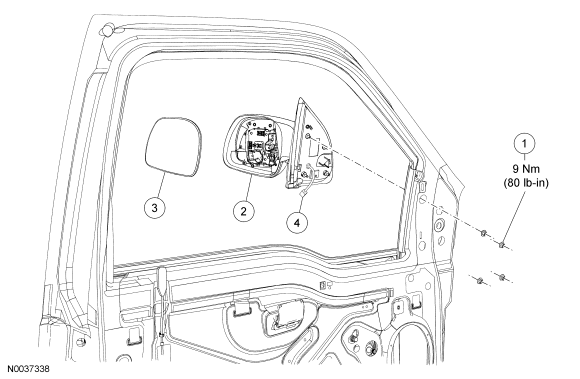

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
N621906-S361 |
Exterior mirror nut (4 required) |
| 2 |
17682/17683 |
Exterior mirror assembly (RH/LH) |
| 3 |
17K707 |
Exterior mirror glass |
| 4 |
14A005 (Early build)/ 14631 (LH Late build)/ 14630 (RH Late build) |
Exterior mirror electrical connector |
- For additional information, refer to the procedures in this article.
