Window Regulator and Motor - Rear: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

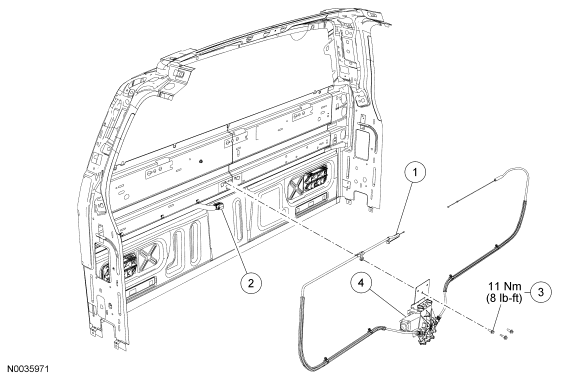

Fig 1: Identifying Window Regulator And Motor With Specifications - Rear

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cable end
2	-	Electrical connector (3 required)
3	-	Bolt (3 required)
4	422B30	Power sliding window motor
