Condenser to Evaporator Line: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

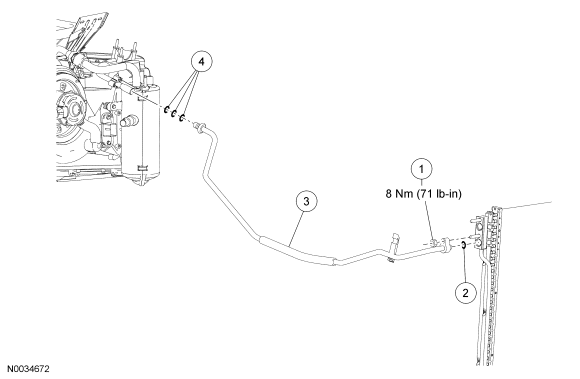

Fig 1: Identifying Condenser To Evaporator Line With Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	N804178-S309	Nut
2	W702645-S300	O-ring
3	19837	Condenser-to-evaporator line
4	W701992-S	O-rings (3 required)
