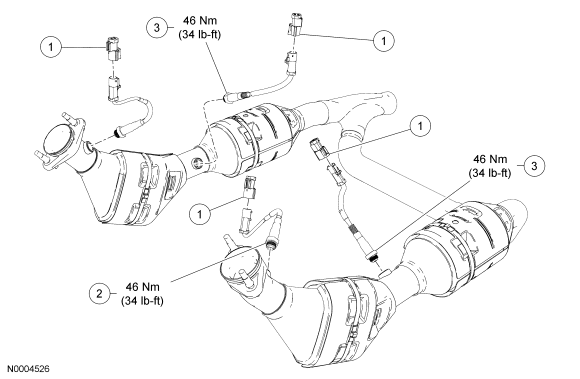

Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
5.4L shown, 6.8L similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Sensor electrical connectors (part of 14A464) |
| 2 | 9F472 | Heated oxygen sensor (HO2S) (2 required) |
| 3 | 9G444 | Catalyst monitor sensors (2 required) |
- For additional information, refer to the procedures in this article.
