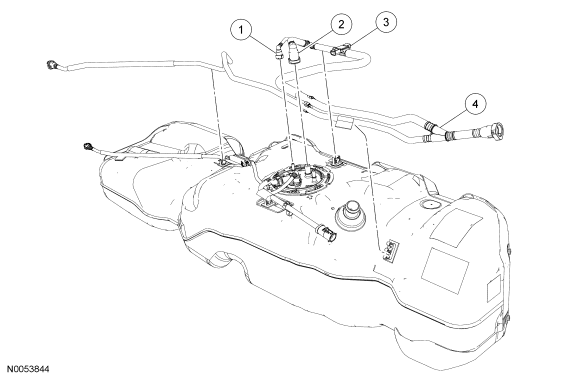

Fuel Vapor Tube Assembly: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Fuel vapor tube assembly-to-fuel pump module quick connect coupling (part of 9J279) |
| 2 |
- |
Fuel vapor tube assembly-to-fuel pump module quick connect coupling (part of 9J279) |
| 3 |
- |
Fuel tank pressure sensor |
| 4 |
9J279 |
Fuel vapor tube assembly |
