Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

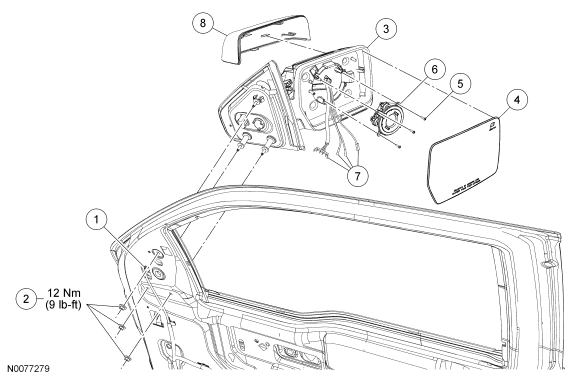

NOTE:
RH side shown, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14630 | Exterior mirror electrical connector |
| 2 | W705760 | Exterior mirror nuts (3 required) |
| 3 | 17682 RH/ 17683 LH | Exterior mirror assembly |
| 4 | 17K707 | Exterior mirror glass |
| 5 | - | Exterior mirror motor screw (3 required) |
| 6 | 17D696 | Exterior mirror motor |
| 7 | - | Exterior mirror wire harness (part of 17682 RH/ 17683 LH) |
| 8 | 17D742 RH/ 17D743 LH | Exterior mirror cover (optional - painted or chrome) |

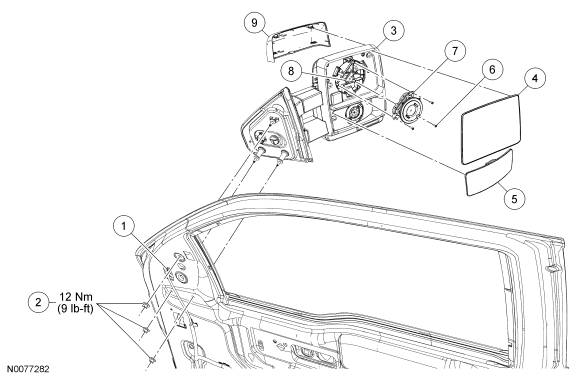

NOTE:
RH side shown, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14630 | Exterior mirror electrical connector |
| 2 | W705760 | Exterior mirror nuts (3 required) |
| 3 | 17682 RH/ 17683 LH | Exterior mirror assembly |
| 4 | 17K707A | Exterior mirror glass |
| 5 | 17K707B | Exterior mirror spotter glass |
| 6 | - | Exterior mirror motor screw (3 required) |
| 7 | 17D696 | Exterior mirror motor |
| 8 | - | Exterior mirror wire harness (part of 17682 RH/ 17683 LH) |
| 9 | 17D742 RH/ 17D743 LH | Exterior mirror cover (painted or black plastic) |
- For additional information, refer to the procedures in this article.
