Door Trim Panel - Rear, SuperCab: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

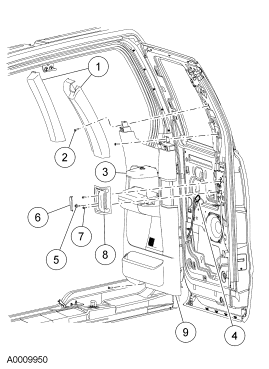

LH side shown, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 1625514 RH/ 1625515 LH | Rear window garnish moulding |
| 2 | W701930 | Bolt (3 required) |
| 3 | 14B134 RH/ 14B135 LH | Rear window control switch panel |
| 4 | 14635 | Electrical connector |
| 5 | N807658 | Door handle bezel bolt |
| 6 | 224A60 | Rear door handle cover plate |
| 7 | W701704 | Rear door handle bolt (2 required) |
| 8 | 264B52 RH/ 264B53 LH | Rear door handle |
| 9 | 1827406 RH/ 1827407 LH | Rear door trim panel |
