Window Regulator and Motor - Rear: Notes

WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Foam Core Butyl E69Z-19562-A

WSB-M3G143-B

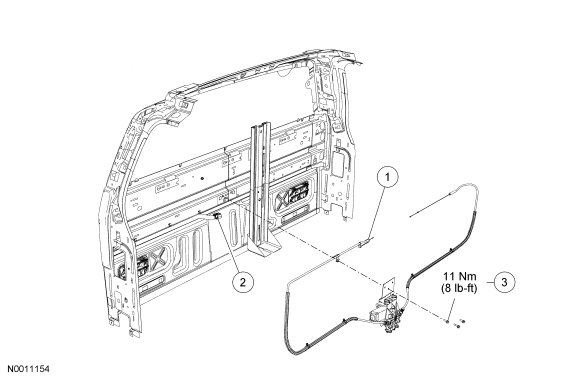

Fig 1: Identifying Rear Window Regulator And Motor With Specifications
GF0002014Courtesy of FORD MOTOR CO.
Item Part Number Description
1 15422A12 Rear window glass regulator and motor assembly
2 14A05 Rear window glass motor electrical connector
3 N605891 Rear window glass regulator and motor assembly screw (3 required)
