Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View, 4.6L (2V) and 5.4L (3V)
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

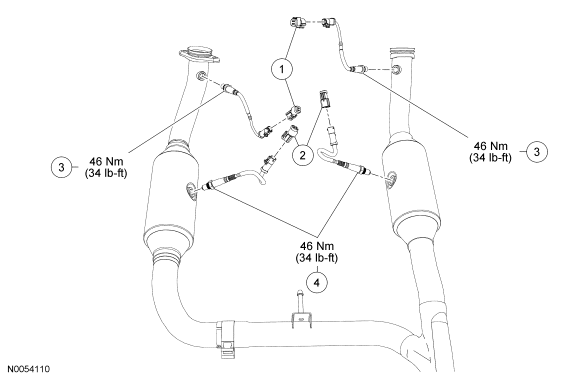

Fig 1: Exploded View Of Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor - 4.6L (2V) And 5.4L (3V)
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Heated oxygen sensor (HO2S) electrical connectors (2 required) |
| 2 | 14A464 | Catalyst monitor sensor electrical connectors (2 required) |
| 3 | 9F472 | HO2S (2 required) |
| 4 | 9G444 | Catalyst monitor sensors (2 required) |
- For additional information, refer to the procedures in this article.
