Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Remove the evaporative emission (EVAP) canister. For additional information, refer to EVAPORATIVE EMISSION CANISTER .
Disconnect the EVAP canister vent tube-to-dust separator hose.

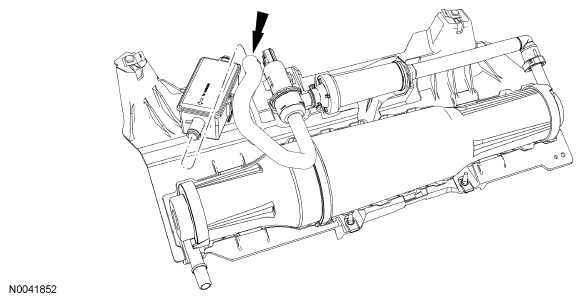

Fig 1: Disconnecting EVAP Canister Vent Tube-To-Dust Separator Hose
Courtesy of FORD MOTOR CO.
Push the lock tab retainer to release the dust separator from the EVAP canister assembly bracket.

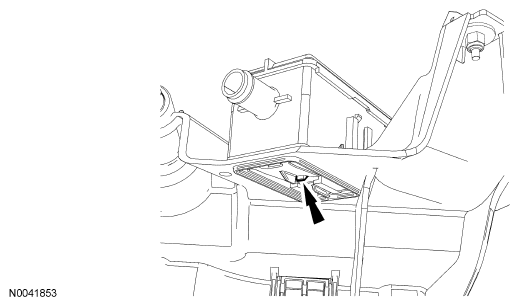

Fig 2: Pushing Lock Tab Retainer To Release Dust Separator From EVAP Canister Assembly Bracket
Courtesy of FORD MOTOR CO.
Remove the dust separator from the EVAP canister assembly bracket.

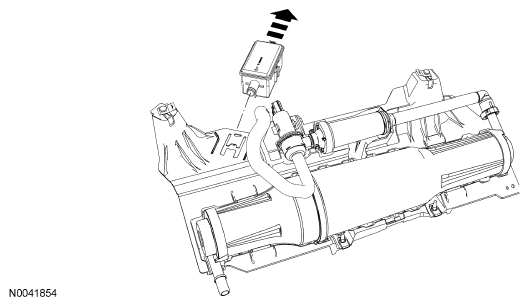

Fig 3: Removing Dust Separator From EVAP Canister Assembly Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
