Door Trim Panel - Rear: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Freestyle shown, Five Hundred and Montego similar.
NOTE: RH shown, LH similar.

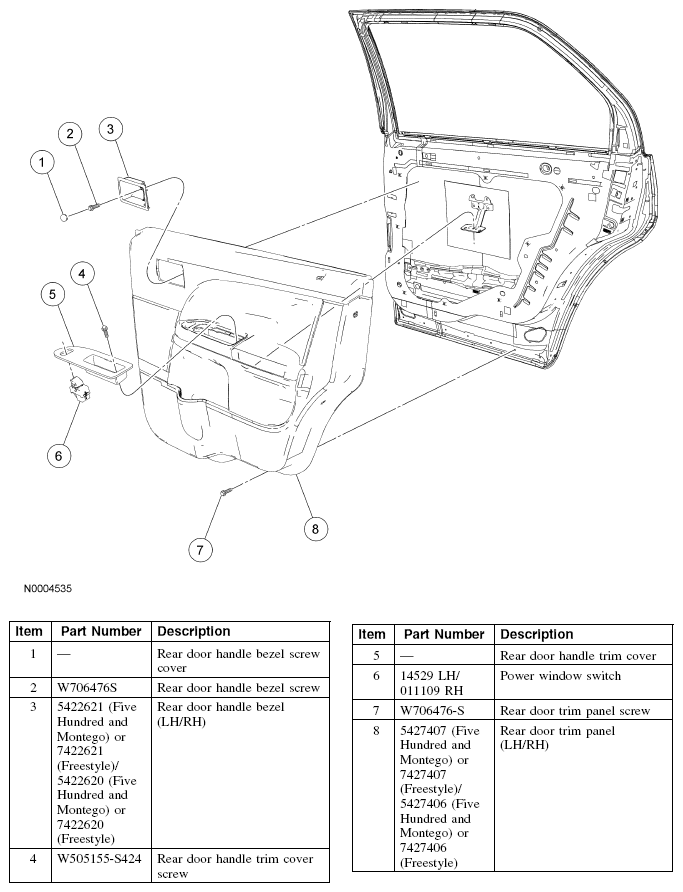

Fig 1: Exploded View Of Door Trim Panel Components - Rear
G04658495Courtesy of FORD MOTOR CO.
