Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 5.4L shown, 6.8L similar.

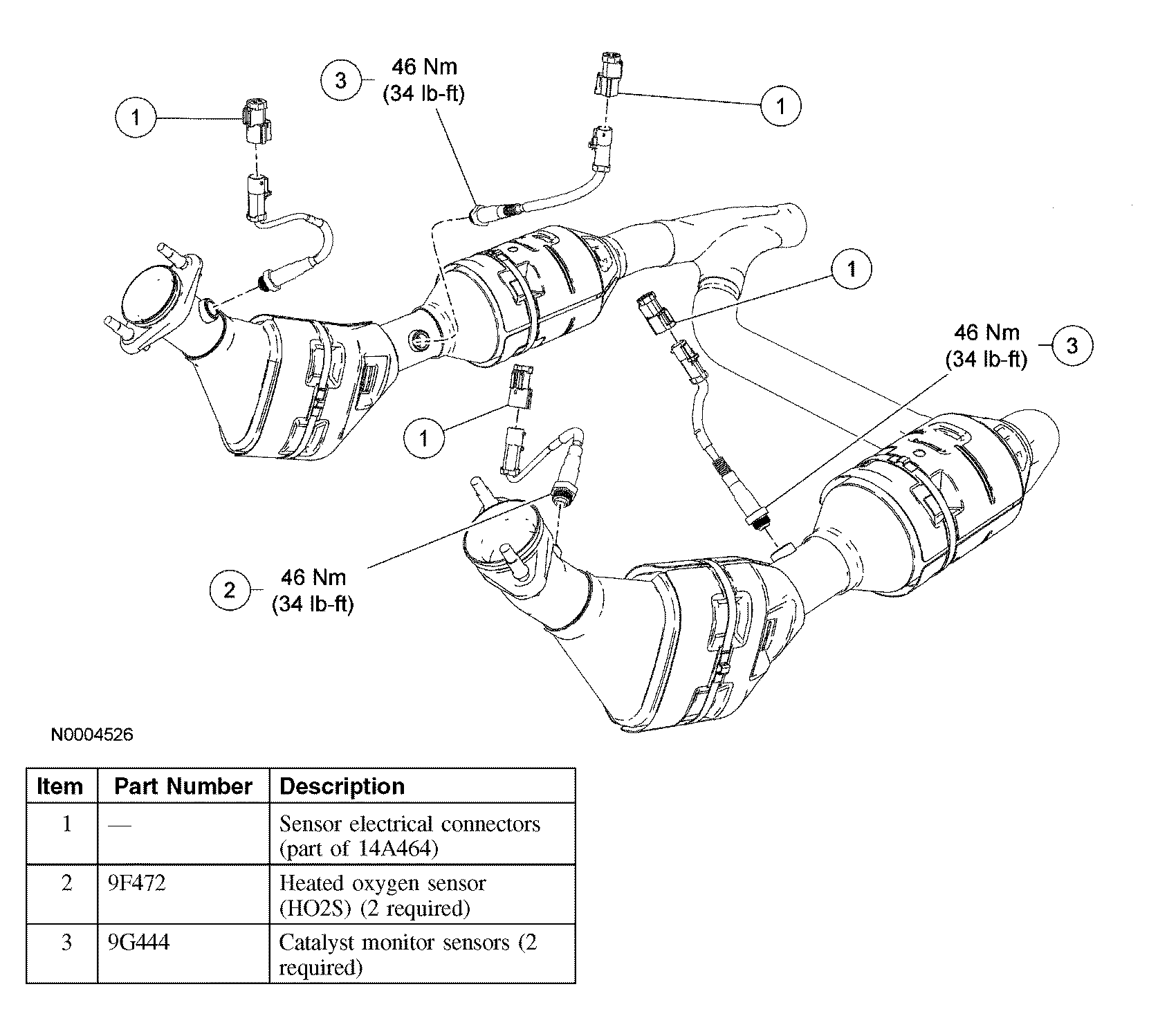

Fig 1: Exploded View Of Heated Oxygen Sensor And Catalyst Monitor Sensor (5.4L 6.8L)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
