Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

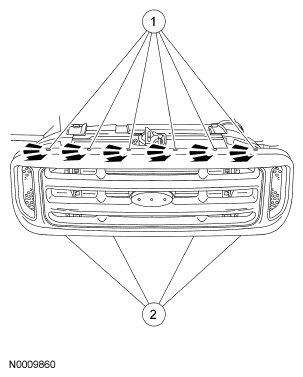

Remove the radiator grille.
1. Remove the screws.
2. Disconnect the lower clips, then remove the radiator grille.

  Fig 1: Disconnecting Lower Clips
  Courtesy of FORD MOTOR CO.
Remove the upper radiator air deflector.
Remove the headlamps. For additional information, refer to EXTERIOR LIGHTING .
Remove the parking lamp assemblies. For additional information, refer to EXTERIOR LIGHTING .
Remove the left side air deflector pushpin and hood latch cable clip.

Fig 2: Locating Left Side Air Deflector Push Pin And Hood Latch Cable Clip
Courtesy of FORD MOTOR CO.
Remove the air conditioning condenser brackets.

Fig 3: Locating Air Conditioning Condenser Brackets
Courtesy of FORD MOTOR CO.
Unclip the hood release cable from the radiator support.
Remove the air deflector pushpins from the right rear air deflector.

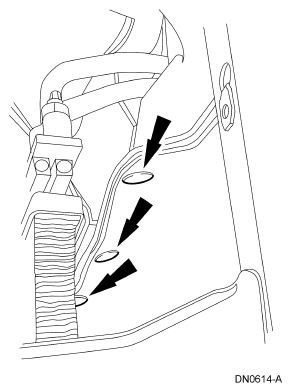

Fig 4: Locating Air Deflector Push Pins
Courtesy of FORD MOTOR CO.
Remove the air deflector pushpins from the left rear air deflector.

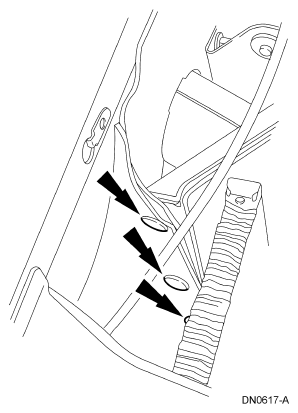

Fig 5: Locating Air Deflector Push Pins From Left Rear Air Deflector
Courtesy of FORD MOTOR CO.
Remove the 3 air deflector pin-type retainers and the air temperature sensor.

Fig 6: Locating Three Air Deflector Pin-Type Retainers And Air Temperature Sensor
Courtesy of FORD MOTOR CO.
Remove the radiator grille opening panel reinforcement retaining bolts.
- To install, tighten to 7 Nm (62 lb-in).

  Fig 7: Locating Radiator Grille Opening Panel Reinforcement Retaining Bolts
  Courtesy of FORD MOTOR CO.
Lift the air conditioning condenser, then remove the radiator grille opening panel reinforcement.
To install, reverse the removal procedure.
