Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the drive belt tensioner clockwise and remove the accessory drive belt.

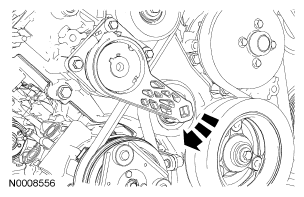

    Fig 1: Rotating Drive Belt Tensioner
    G04649343Courtesy of FORD MOTOR CO.
    2. NOTE: Refer to ACCESSORY DRIVE  for correct drive belt routing.
  2. To install, reverse the removal procedure.
