Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Release the stops and lower the glove compartment door.

Fig 1: Identifying Stops And Lower Glove Compartment Door
Courtesy of FORD MOTOR CO.
Disconnect the connector.

Fig 2: Locating Connector
Courtesy of FORD MOTOR CO.
Remove the electronic blend door actuator and bracket assembly.
1. Remove the 2 screws.
2. Rotate the blend door actuator and bracket assembly.
3. Remove the electronic blend door actuator and bracket assembly.

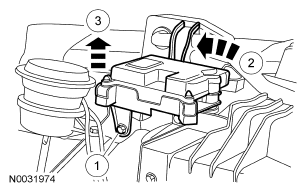

  Fig 3: Locating Electronic Blend Door Actuator And Bracket Assembly
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
