Engine Support Insulators: Installation

WARNING: This page is about a different car, the 2006 Ford Pickup and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

    RH engine mount

    CAUTION: Clean the engine mount bracket-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
  1. Position the RH engine mount bracket and install the 4 bolts.
    • Tighten to 63 Nm (46 lb-ft).

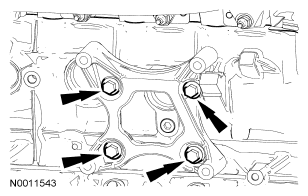

      Fig 1: Locating Engine Mount Bracket Bolts
      G04647153Courtesy of FORD MOTOR CO.
  2. CAUTION: Clean the engine mount-to-chassis mating surfaces of any dirt or foreign material prior to installation.
  3. Position the RH engine mount and install the 4 bolts.
    • Tighten to 63 Nm (46 lb-ft).

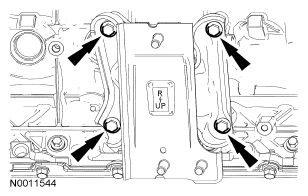

      Fig 2: Locating RH Engine Mount Bolts
      G04647154Courtesy of FORD MOTOR CO.
  4. LH engine mount

    CAUTION: Clean the engine mount-to-oil filter adapter and engine mount-to-chassis mating surfaces of any dirt or foreign material prior to installation.
  5. Position the LH engine mount and install the 3 bolts.
    • Tighten to 63 Nm (46 lb-ft).

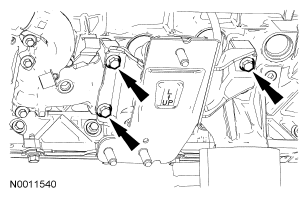

      Fig 3: Locating LH Engine Mount Bolts
      G04647155Courtesy of FORD MOTOR CO.
  6. All vehicles

  7. Lower the engine into position.
  8. CAUTION: Only use hand tools when installing the RH engine mount nut or damage to the engine mount can occur.
    NOTE: RH shown, LH similar.
  9. Install the 6 engine mount nuts.
    • Tighten to 103 Nm (76 lb-ft).
      Fig 4: Identifying Engine Mount Nuts
      G03919938Courtesy of FORD MOTOR CO.
  10. CAUTION: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.
  11. Install the transmission mount-to-crossmember nuts.
    • Tighten to 103 Nm (76 lb-ft).
      Fig 5: Identifying Transmission Mount-To-Crossmember Nuts
      G03963913Courtesy of FORD MOTOR CO.
  12. Position the Y-pipe and install the 4 nuts.
    • Tighten to 40 Nm (30 lb-ft).
      Fig 6: Locating Exhaust Manifold-To-Pipe Nuts
      G03920889Courtesy of FORD MOTOR CO.
  13. Remove the special tools.
    Fig 7: Identifying Special Engine Support Tools
    G04647876Courtesy of FORD MOTOR CO.
  14. If installing the RH engine mount, install the starter. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES .
  15. Install the upper cooling fan shroud. For additional information, refer to ENGINE COOLING .
  16. Install the generator. For additional information, refer to GENERATOR AND REGULATOR .
  17. Install the air cleaner housing. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
  18. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
