Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Regular and Crew Cab vehicles

Remove the rear trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
SuperCab vehicles
Remove the child safety seat tether anchors. For additional information, refer to SAFETY BELT SYSTEM .
Remove the rear corner trim panels. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .

All vehicles

Disconnect the power sliding window cable retainer clips.

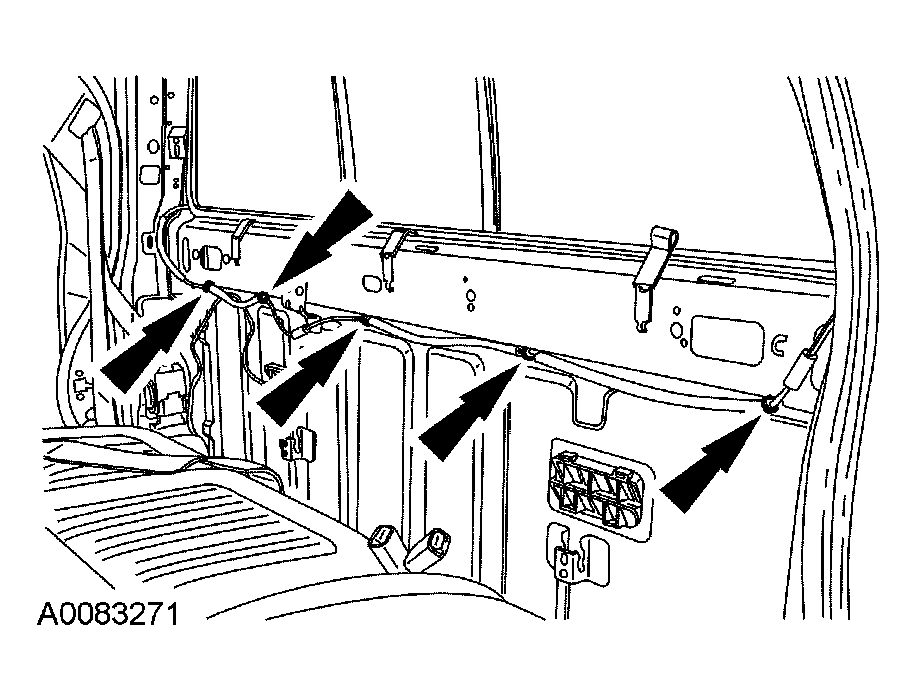

Fig 1: Disconnecting Power Sliding Window Cable Retainer Clips
Courtesy of FORD MOTOR CO.

NOTE: Left side is shown, right side is similar.

Fig 2: Removing Left Cable Swag From Power Sliding Window

Courtesy of FORD MOTOR CO.

Remove the left cable swag from the power sliding window.
Remove the left transition block from the sliding window trough.

Fig 3: Locating Rear Sliding Window Trough
Courtesy of FORD MOTOR CO.
Remove the left transition block from the cable end.

Fig 4: Removing Left Transition Block From Cable End
Courtesy of FORD MOTOR CO.
Pull the left cable end out of the sliding window trough.

Fig 5: Pulling Left Cable
Courtesy of FORD MOTOR CO.
Repeat steps 5 through 8 for the right side.

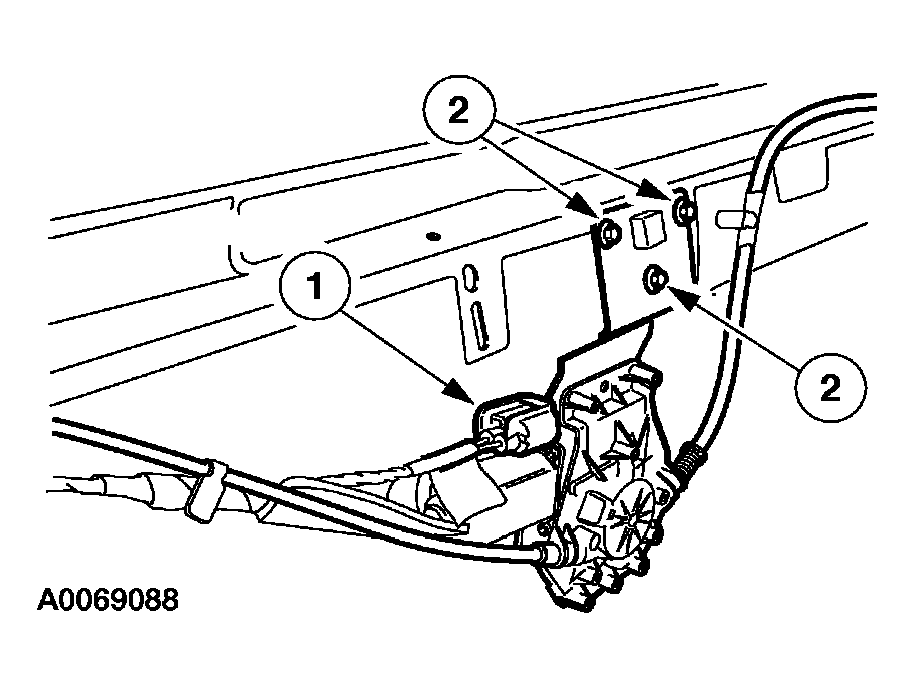

Remove the power sliding window motor and bracket.
1. Disconnect the electrical connector.
2. Remove the bolts.

  Fig 6: Removing Bolts
  Courtesy of FORD MOTOR CO.
