Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the window control switch (if so equipped). For additional information, refer to SWITCH in this article.
Remove the window crank handle (manual windows only).
1. Position the window crank handle cover aside.
2. Remove the window crank handle retaining screw and the window crank handle.

  Fig 1: Removing Window Crank Handle Retaining Screw
  Courtesy of FORD MOTOR CO.
Remove the door trim panel and watershield.

NOTE: Do not remove the window glass from the door.

Remove the window glass from the window regulator.
Tape the window glass in the full up position.
Disconnect the window motor electrical connector (power windows only).

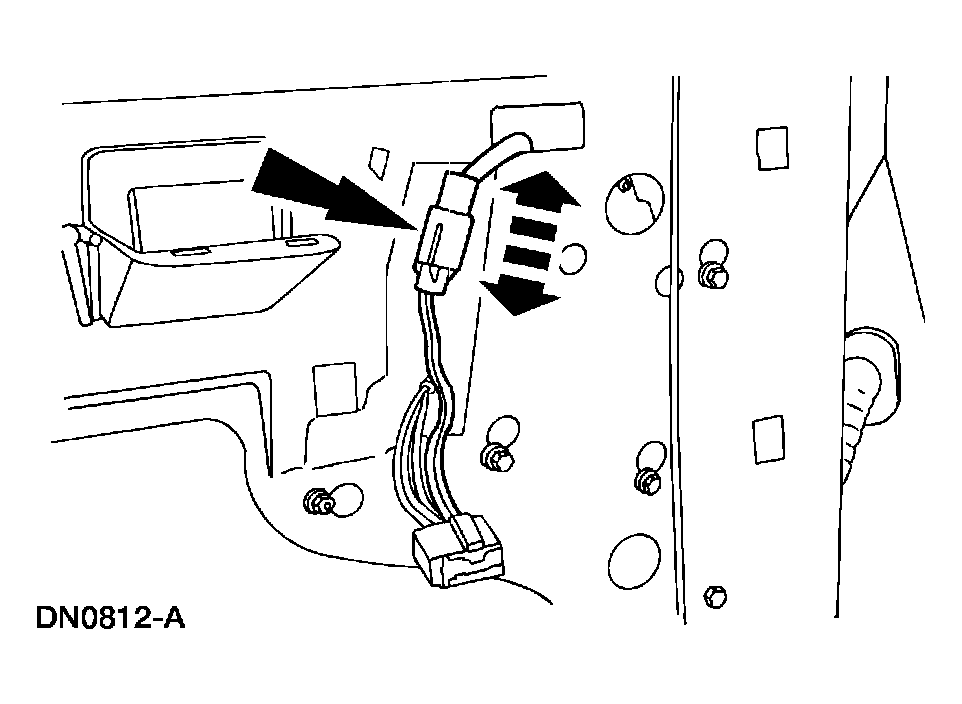

Fig 2: Disconnecting Window Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Loosen the nuts and pull the arm from the mounting position.

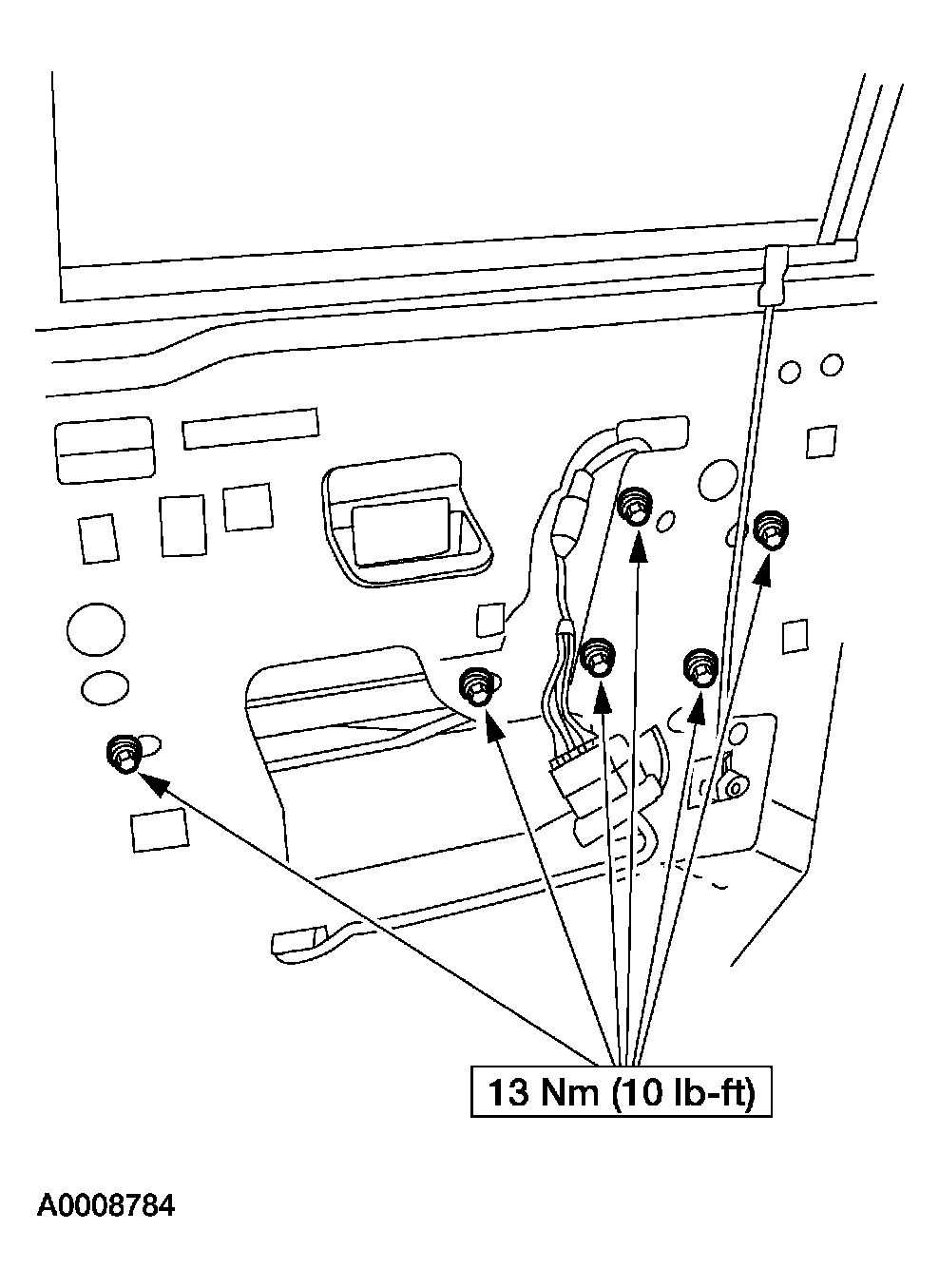

Fig 3: Loosening Nuts - With Torque Specifications
Courtesy of FORD MOTOR CO.
Remove the rear door manual window regulator from the door.
To install, reverse the removal procedure.
