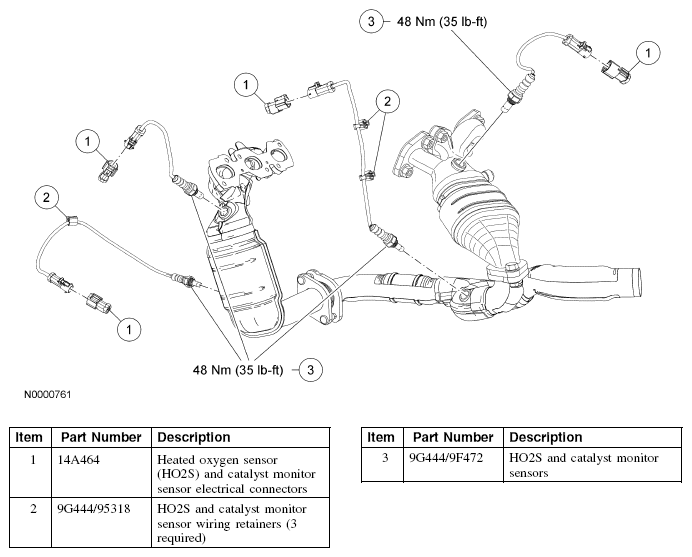

Fig 1: Exploded View Of Heated Oxygen Sensor (HO2S) And Catalyst Monitor Sensor With Torque Specifications
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate procedures.
