Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bumper cover. For additional information, refer to BUMPERS .
  2. Remove the 2 radiator grille nuts.
    Fig 1: Removing Radiator Grille Nuts
    G04622216Courtesy of FORD MOTOR CO.
  3. Release the 4 clips and remove the radiator grille

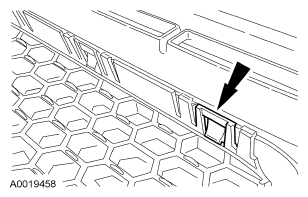

    Fig 2: Releasing Clips Of Radiator Grille
    G04622217Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
