Section 371 (Manual Transmission): Removal: Transaxle: Removal

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.3L .
  3. Remove the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  4. Remove the air cleaner outlet tube.
    1. Disconnect the emission management hose.
    2. Loosen the clamp.
    3. Remove the air cleaner outlet tube.

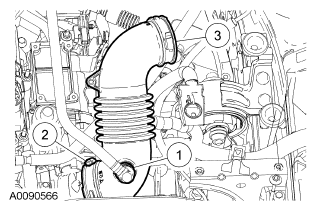

      Fig 1: Identifying Air Cleaner Assembly
      G04620961Courtesy of FORD MOTOR CO.
  5. Remove the wiring harness bracket nuts.

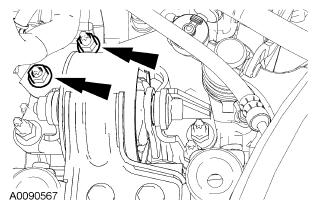

    Fig 2: Locating Wiring Harness Bracket Nuts
    G04620962Courtesy of FORD MOTOR CO.
  6. Disconnect the reverse switch and vehicle speed sensor (VSS) connectors.

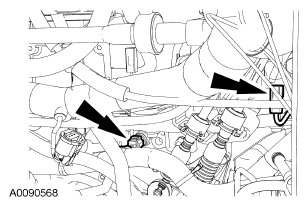

    Fig 3: Locating Reverse Switch And Vehicle Speed Sensor (VSS) Connectors
    G04620963Courtesy of FORD MOTOR CO.
  7. Disconnect the shift cables.

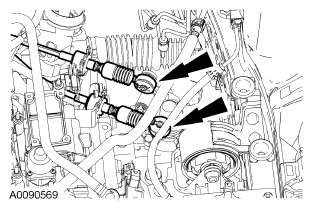

    Fig 4: Locating Shift Cables
    G04620964Courtesy of FORD MOTOR CO.
  8. CAUTION: To prevent damage, do not spill brake fluid onto plastic or painted surfaces.
  9. Position the clutch hydraulic line aside.
    1. Remove the clutch hydraulic line bracket-to-transaxle bolt.
    2. Disconnect the clutch hydraulic line from the clutch slave cylinder.
      • Plug the hydraulic line.
    3. Position the clutch hydraulic line aside.

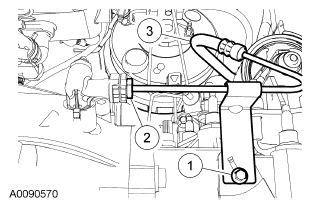

      Fig 5: Identifying Clutch Hydraulic Line From Clutch Slave Cylinder
      G04620965Courtesy of FORD MOTOR CO.
  10. Remove the shift cable bracket.
    • Remove the 3 bolts.
    • Remove the shift cable bracket.

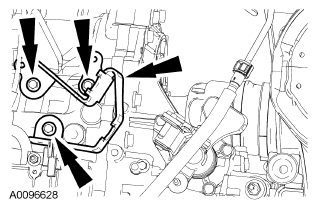

      Fig 6: Locating Shift Cable Bracket And Bolts
      G04620966Courtesy of FORD MOTOR CO.
  11. Using the special tool, support the engine.

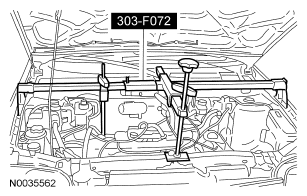

    Fig 7: Supporting Engine Using Special Tool
    G04620967Courtesy of FORD MOTOR CO.
  12. Remove the LH transaxle support insulator bracket.
    1. Remove the 3 nuts.
    2. Remove the through-bolt.
    3. Remove the LH transaxle support insulator bracket.

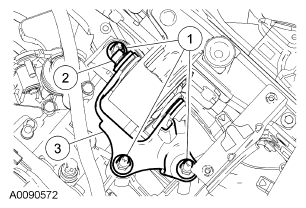

      Fig 8: Identifying LH Transaxle Support Insulator Bracket
      G04620968Courtesy of FORD MOTOR CO.
  13. Remove the transaxle rear support insulator.
    1. Remove the bolt.
    2. Remove the nuts.
    3. Remove the through-bolt.
    4. Remove the transaxle rear support insulator.

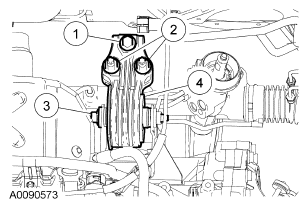

      Fig 9: Identifying Rear Transaxle Support Insulator
      G04620969Courtesy of FORD MOTOR CO.
  14. Remove the 3 upper transaxle-to-engine bolts.

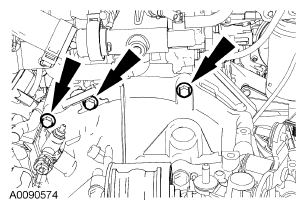

    Fig 10: Locating Upper Transaxle-To-Engine Bolts
    G04620970Courtesy of FORD MOTOR CO.
  15. Drain the transaxle fluid. For additional information, refer to TRANSAXLE DRAINING AND FILLING .
  16. Remove the crossmember.
    1. Remove the bolts.
    2. Remove the crossmember.

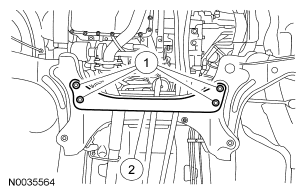

      Fig 11: Identifying Crossmember And Bolts
      G04620971Courtesy of FORD MOTOR CO.
  17. Remove the front-to-aft crossmember.
    1. Remove the 2 transaxle front support insulator bolts.
    2. Remove the splash shield screw.
    3. Remove the 2 front-to-aft crossmember bolts and nut.
    4. Remove the crossmember.

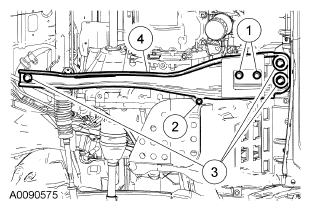

      Fig 12: Identifying Front-To-AFT Crossmember And Bolts
      G04620972Courtesy of FORD MOTOR CO.
  18. Remove the 3 LH splash shield screws.
    Fig 13: Locating Splash Shield Screws
    G04620973Courtesy of FORD MOTOR CO.
  19. Remove the LH side splash shield.
    1. Remove the 2 screws.
    2. Remove the LH splash shield.

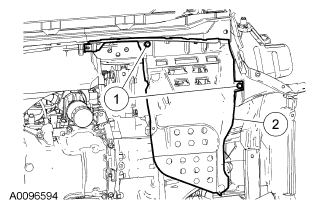

      Fig 14: Locating LH Side Splash Shield And Screw
      G04620974Courtesy of FORD MOTOR CO.
  20. Remove the starter motor assembly. For additional information, refer to STARTING SYSTEM .
  21. If equipped, remove the transfer case. For additional information, refer to TRANSFER CASE-POWER TRANSFER UNIT (PTU) .
  22. Remove the RH intermediate shaft and the LH halfshaft. For additional information, refer to FRONT DRIVE HALFSHAFTS .
  23. Remove the transaxle front support insulator bracket.
    1. Remove the through-bolt.
    2. Remove the transaxle front support insulator.
    3. Remove the 3 bolts.
    4. Remove the transaxle front support insulator bracket.

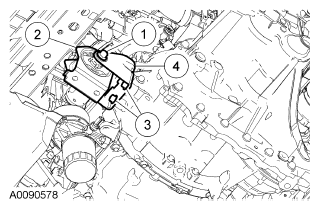

      Fig 15: Identifying Transaxle Front Support Insulator Bracket
      G04620975Courtesy of FORD MOTOR CO.
  24. Remove the exhaust outlet pipe. For additional information, refer to EXHAUST SYSTEM .
  25. WARNING: Secure the transaxle to the transmission jack with a safety chain. Failure to follow these instructions may result in personal injury.
  26. Position the transmission jack under the transaxle. Raise and support the transaxle.
  27. Remove the remaining 6 transaxle-to-engine bolts.
  28. Remove the transaxle.
