Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING - 2.3L .
Using the special tool, support the engine.

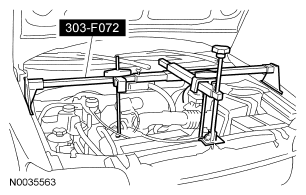

Fig 1: Supporting Engine Using Special Tool
Courtesy of FORD MOTOR CO.
Remove the 4 LH transaxle support insulator bolts.
- To install, tighten to 48 Nm (35 lb-ft).
Remove the through bolt and the LH transaxle support insulator.
- To install, tighten to 103 Nm (76 lb-ft).
Remove the 3 nuts and the LH transaxle support insulator bracket.
- To install, tighten to 40 Nm (30 lb-ft).
To install, reverse the removal procedure.
