Removal and Installation

WARNING: This page is about a different car, the 2005 Ford Pickup, 2005 Ford F550 Super Duty, 2005 Ford F450 Super Duty, and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Recover the refrigerant. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
Remove the tube clamp.

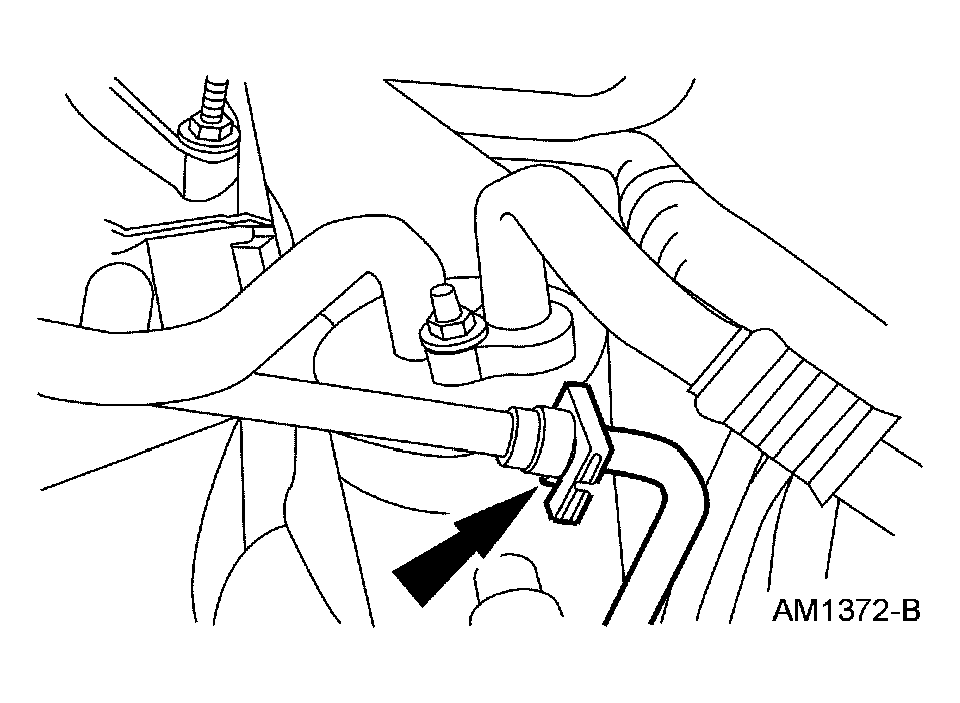

Fig 1: Removing Tube Clamp
Courtesy of FORD MOTOR CO.

Vehicles equipped with auxiliary climate control

Disconnect the auxiliary line fitting.
- Discard the O-ring seals.

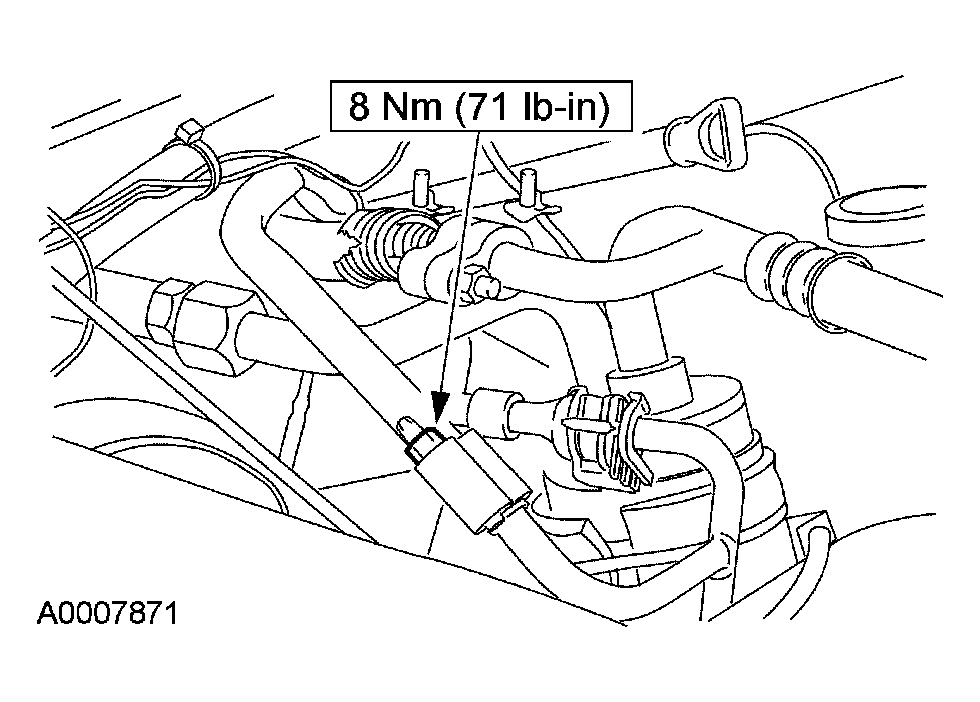

  Fig 2: Disconnecting Auxiliary Line Fitting
  Courtesy of FORD MOTOR CO.

Vehicles with 6.0L Diesel

Remove the clamps and remove the intercooler tube (if equipped).

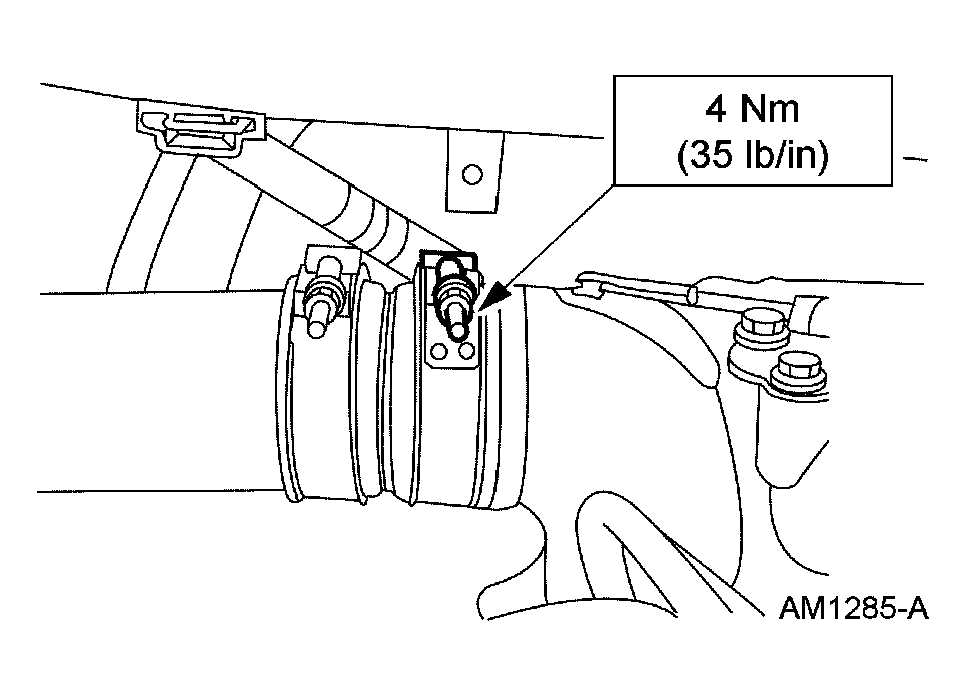

Fig 3: Removing Clamps And Removing Intercooler Tube
Courtesy of FORD MOTOR CO.

All vehicles

Disconnect the condenser to evaporator line from the A/C evaporator core. For additional information on the spring lock couplings disconnect and connect procedure, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .

Fig 4: Disconnecting Condenser To Evaporator Line From A/C Evaporator Core
Courtesy of FORD MOTOR CO.
Remove the eight pin-type retainers and the sight shield.

Fig 5: Identifying Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Disconnect the condenser-to-evaporator line from the A/C condenser core and remove the line.
- Discard the O-ring seals.

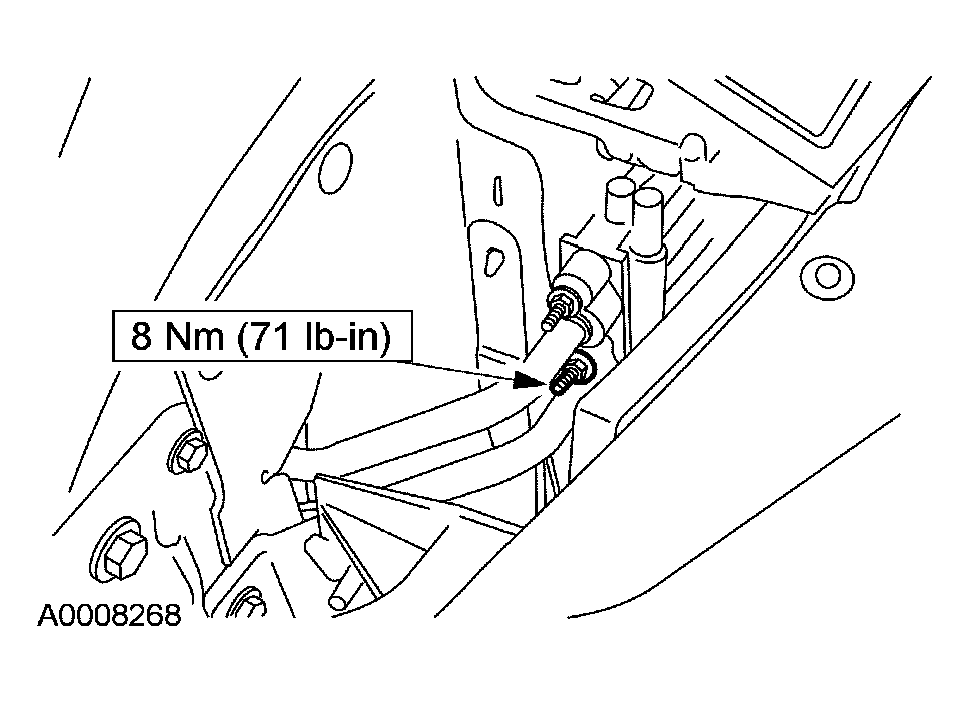

  Fig 6: Disconnecting Condenser-To-Evaporator Line From A/C Condenser Core And Removing Line
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Install new O-ring seals.
- Lubricate the refrigerant system with the correct amount of clean PAG oil. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
Evacuate, leak test and charge the refrigerant system. For additional information, refer to CLIMATE CONTROL SYSTEM-GENERAL INFORMATION .
