Auxiliary Evaporator Outlet and Inlet Line - Front: Notes

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D	WSH-M1C231-B

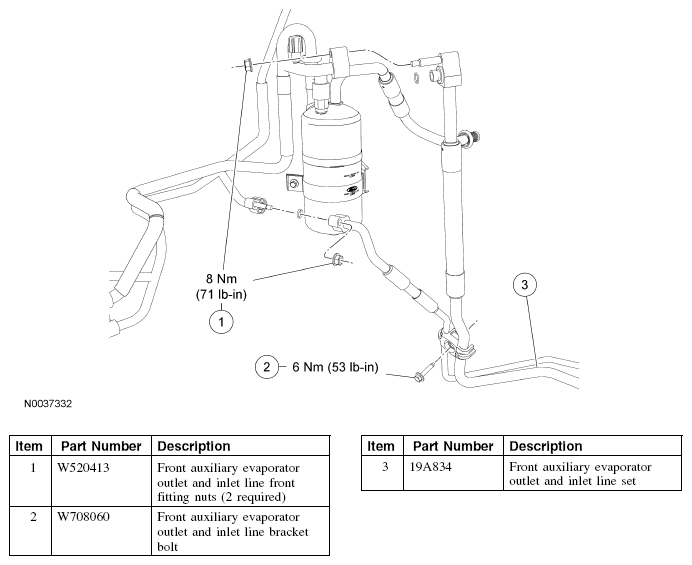

Fig 1: Auxiliary Evaporator Outlet And Inlet Line Replacement Components (Front Connection) With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: A/C service lines shown.

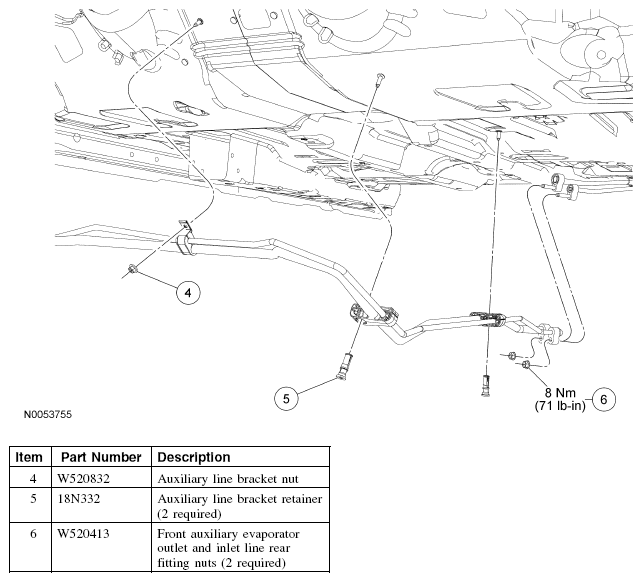

Fig 2: A/C Service Line Replacement Components (Intermediate Connection) With Torque Specifications

Courtesy of FORD MOTOR CO.
