Heated Oxygen Sensor (HO2S) and Catalyst Monitor Sensor

WARNING: This page is about a different car, the 2006 Mercury Mariner and 2006 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

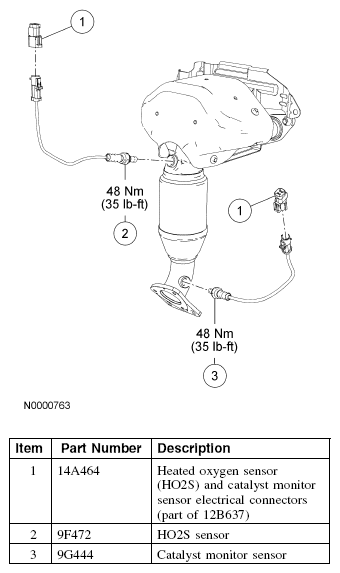

Fig 1: Heated Oxygen Sensor HO2S And Catalyst Monitor Sensor With Torque Specifications
G04619708Courtesy of FORD MOTOR CO.
