Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Reach through the door opening and remove the pin.

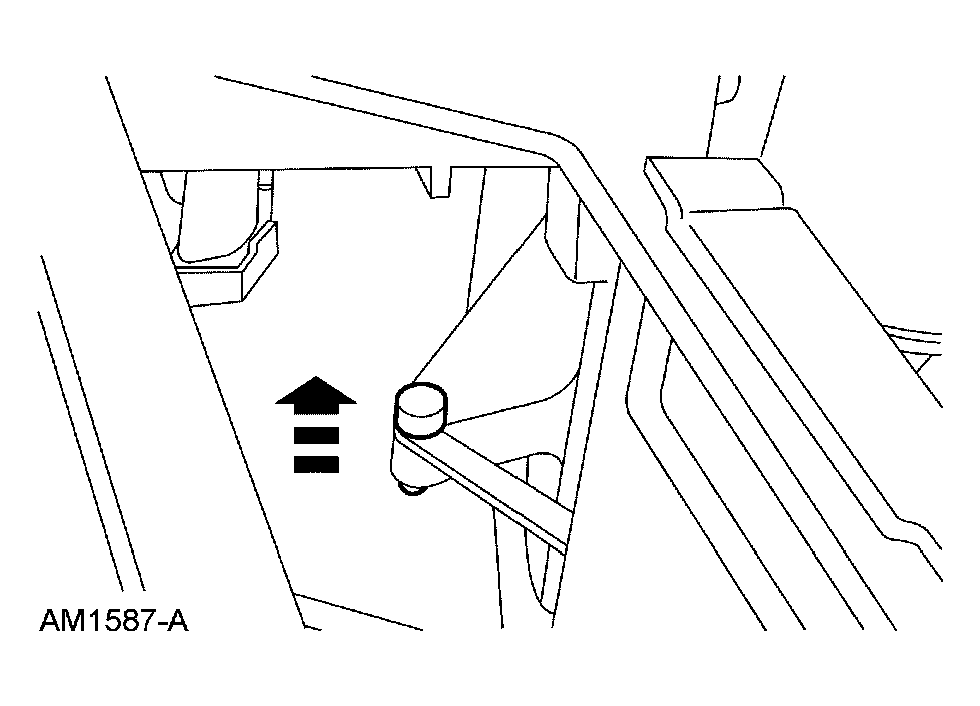

    Fig 1: Removing Door Pin
    G04585287Courtesy of FORD MOTOR CO.
  3. Disconnect the panel door vacuum control motor vacuum connector.
  4. Remove the 2 screws and the panel door vacuum control motor.

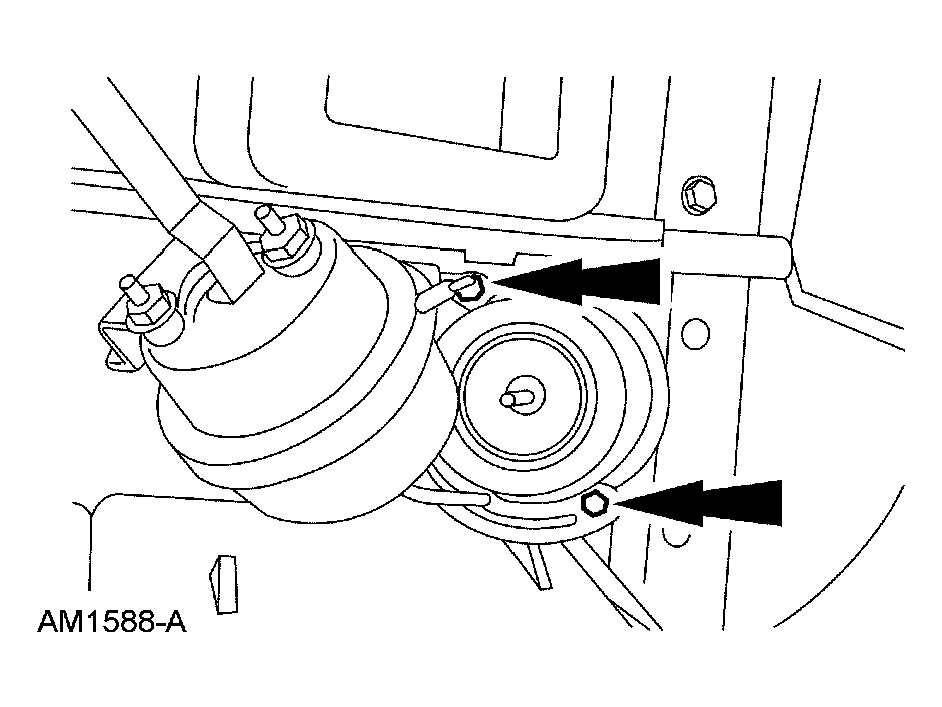

    Fig 2: Removing Panel Door Vacuum Control Motor
    G04585288Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
