Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pin-type retainers and the instrument panel lower insulator.

Fig 1: Removing Pin-Type Retainers And Instrument Panel Lower Insulator
Courtesy of FORD MOTOR CO.

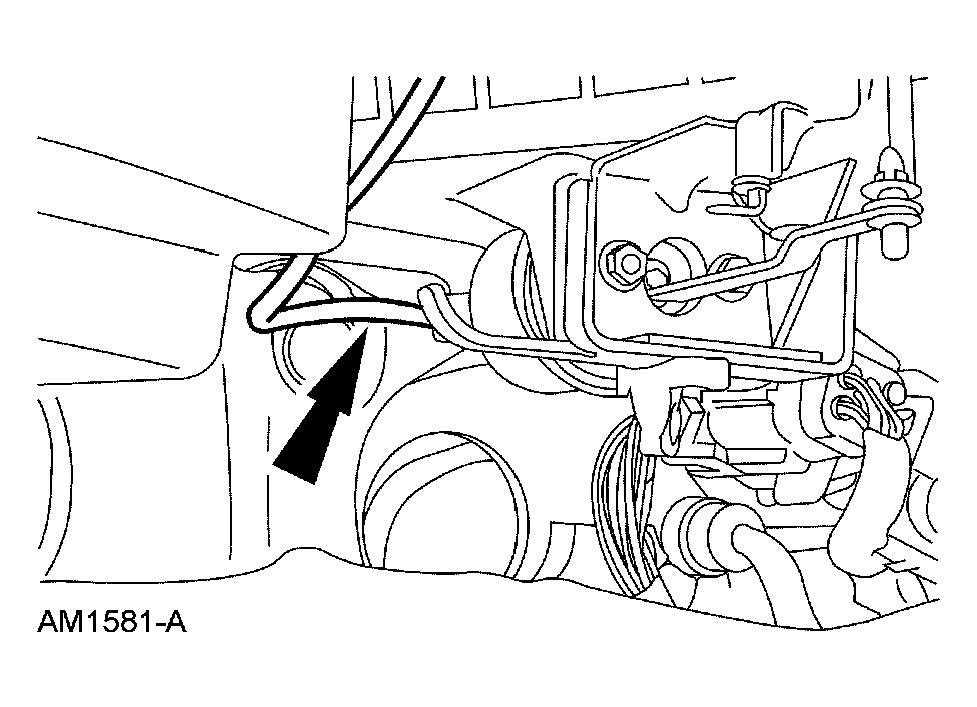

Disconnect the air inlet door vacuum control motor vacuum connector.

Fig 2: Disconnecting Air Inlet Door Vacuum Control Motor Vacuum Connector
Courtesy of FORD MOTOR CO.

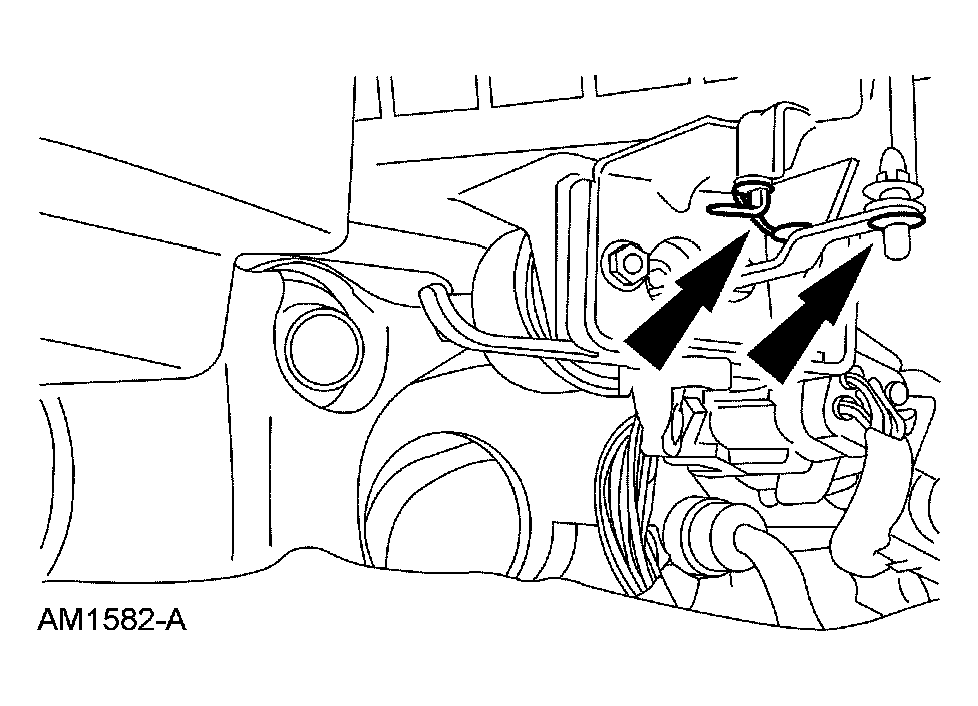

Remove the control arm clip and the spring.

Fig 3: Removing Control Arm Clip And Spring
Courtesy of FORD MOTOR CO.

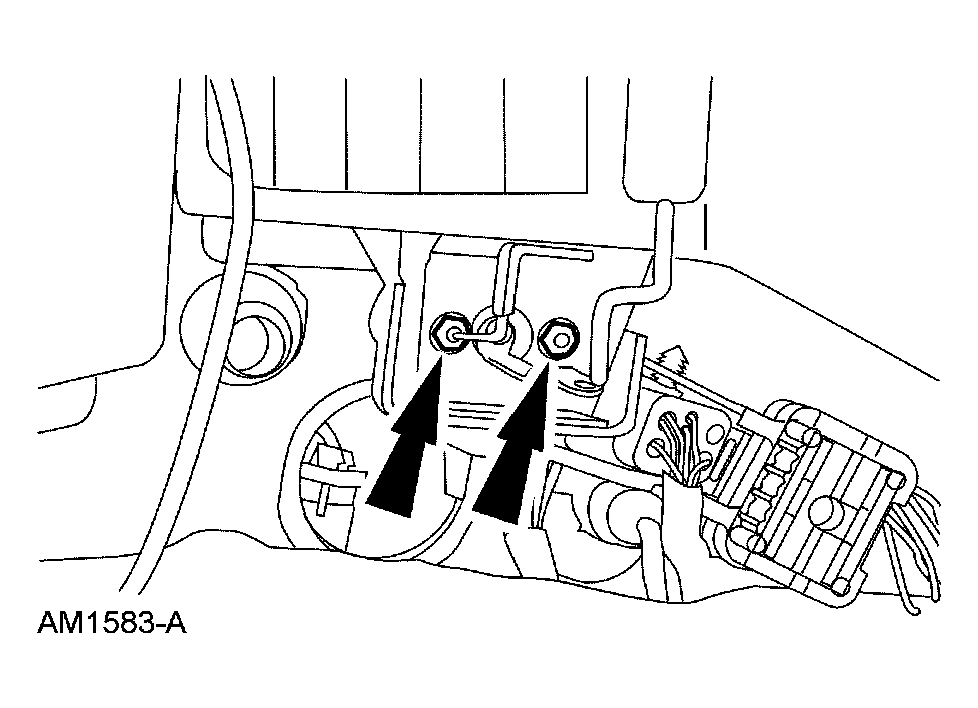

Remove the nuts and the air inlet door vacuum control motor.

Fig 4: Removing Air Inlet Door Vacuum Control Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
