Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the temperature blend door actuator electrical connector.

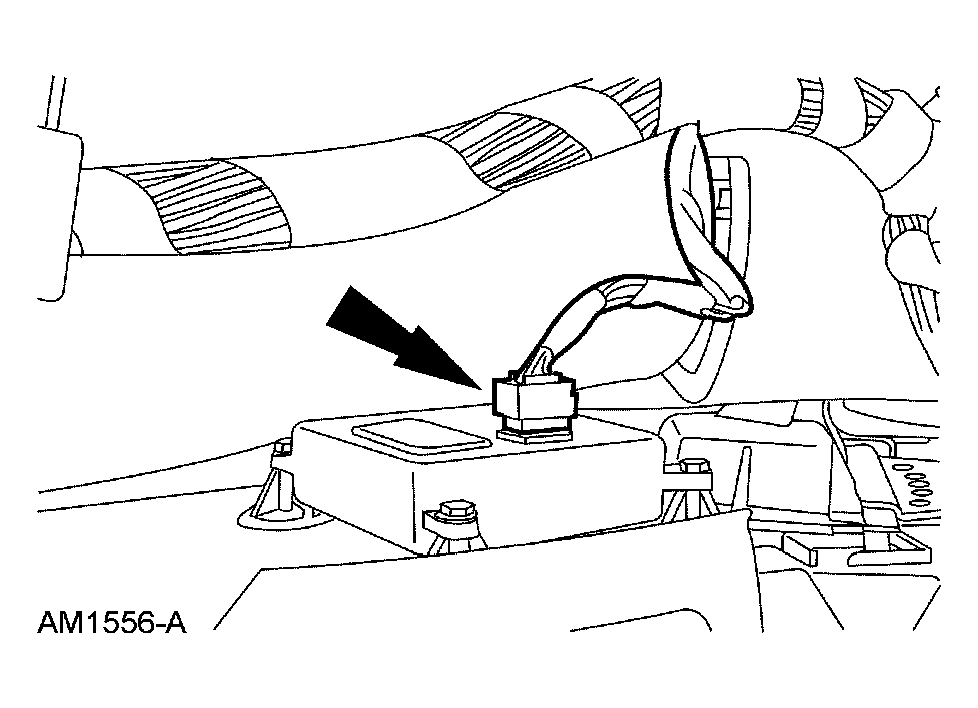

Fig 1: Disconnecting Temperature Blend Door Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 4 temperature blend door actuator screws.

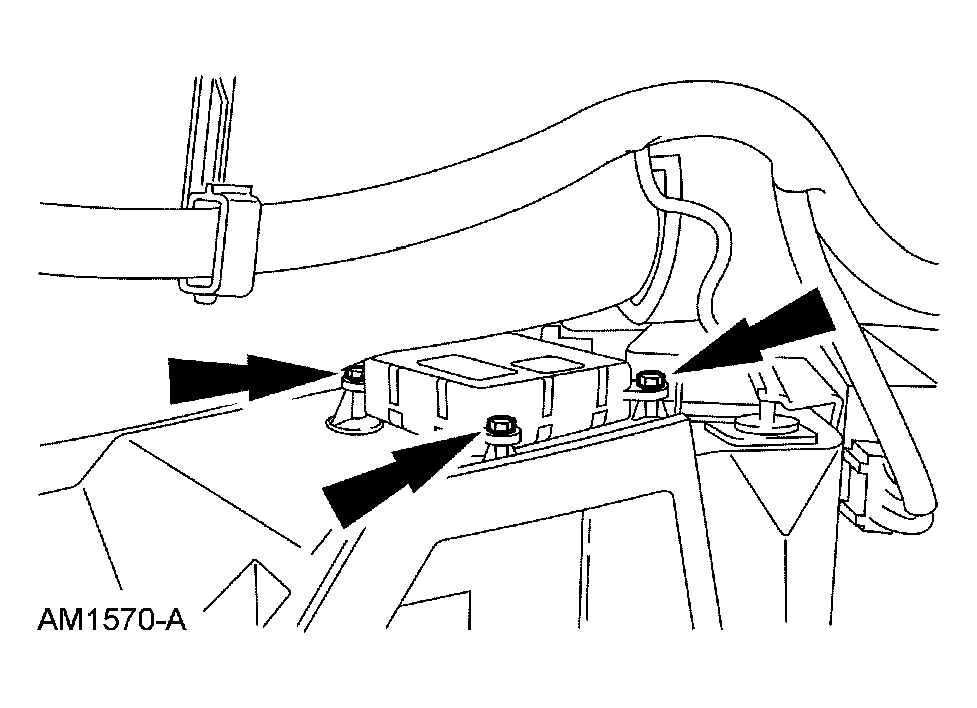

Fig 2: Removing Temperature Blend Door Actuator Screws
Courtesy of FORD MOTOR CO.
Remove the temperature blend door actuator.

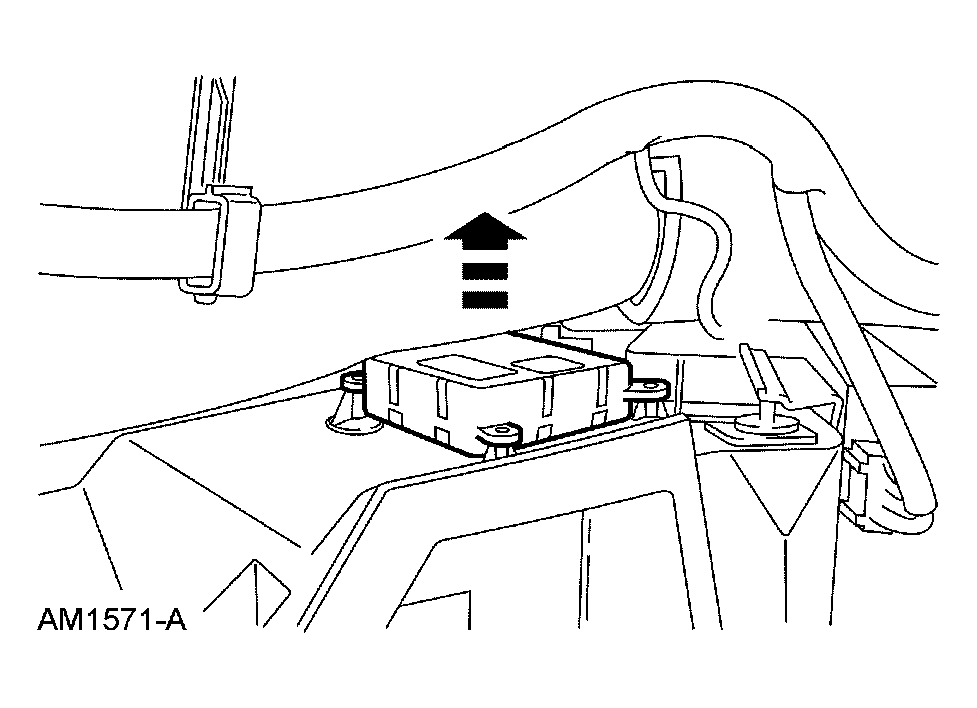

Fig 3: Removing Temperature Blend Door Actuator
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
