Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If equipped with fire suppression system, depower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

Remove the evaporative emission (EVAP) canister. For additional information, refer to EVAPORATIVE EMISSION CANISTER .
Disconnect the EVAP vapor tube from the dust separator.
Depress the lock tab on the inside of the EVAP canister to release the dust separator.

Fig 1: Depressing Lock Tab On Inside Of EVAP Canister
Courtesy of FORD MOTOR CO.

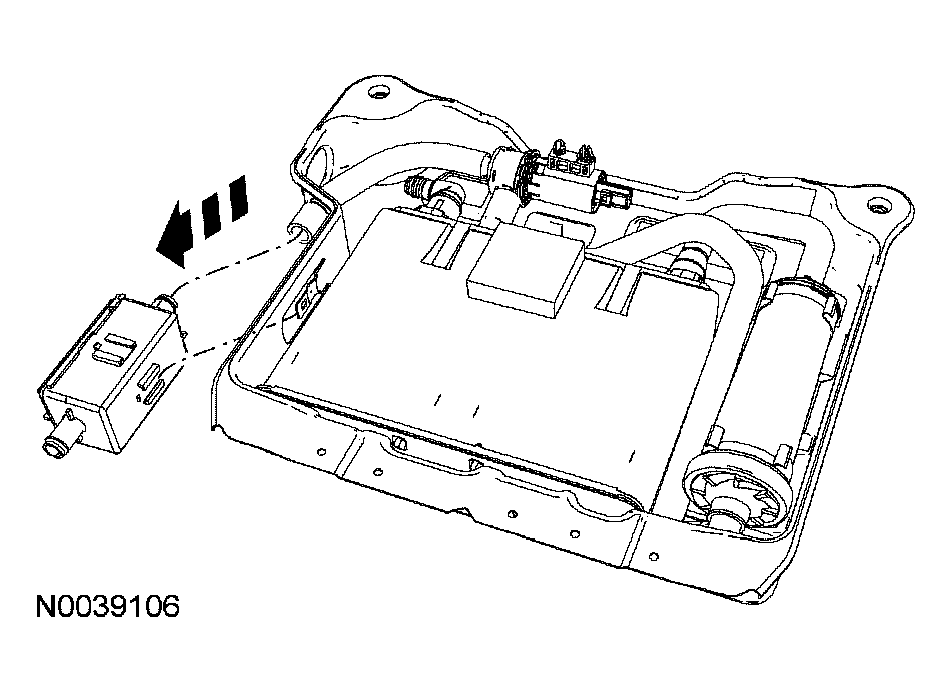

Disconnect the EVAP canister vapor outlet tube and remove the dust separator from the EVAP canister bracket.

Fig 2: Disconnecting EVAP Canister Vapor Outlet Tube
Courtesy of FORD MOTOR CO.

WARNING: If equipped with fire suppression system, repower the system. For important safety warnings and procedures, refer to FIRE SUPPRESSION SYSTEM .

To install, reverse the removal procedure. If equipped with fire suppression system, repower the system.
