Accessory Drive Belt Tensioner: Removal

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE BELT .
  2. Remove the bolt and the accessory drive belt tensioner.

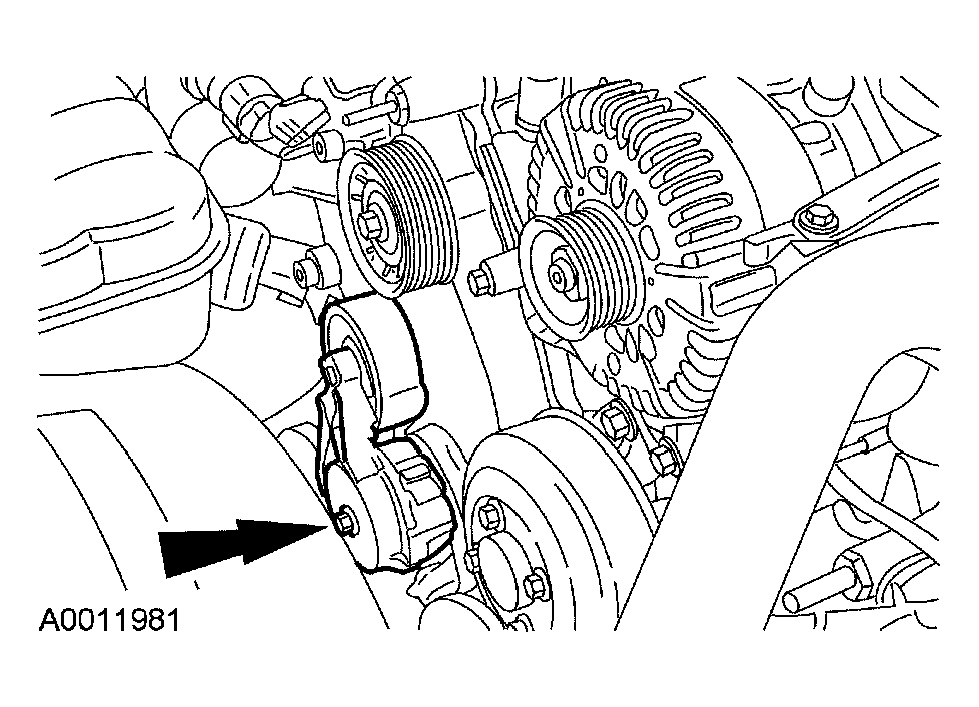

    Fig 1: Removing Bolt And Accessory Drive Belt Tensioner
    G04584097Courtesy of FORD MOTOR CO.
