Accessory Drive Belt Tensioner: Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Install the accessory drive belt tensioner.
Tighten the bolt in 2 stages:
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 90 degrees.

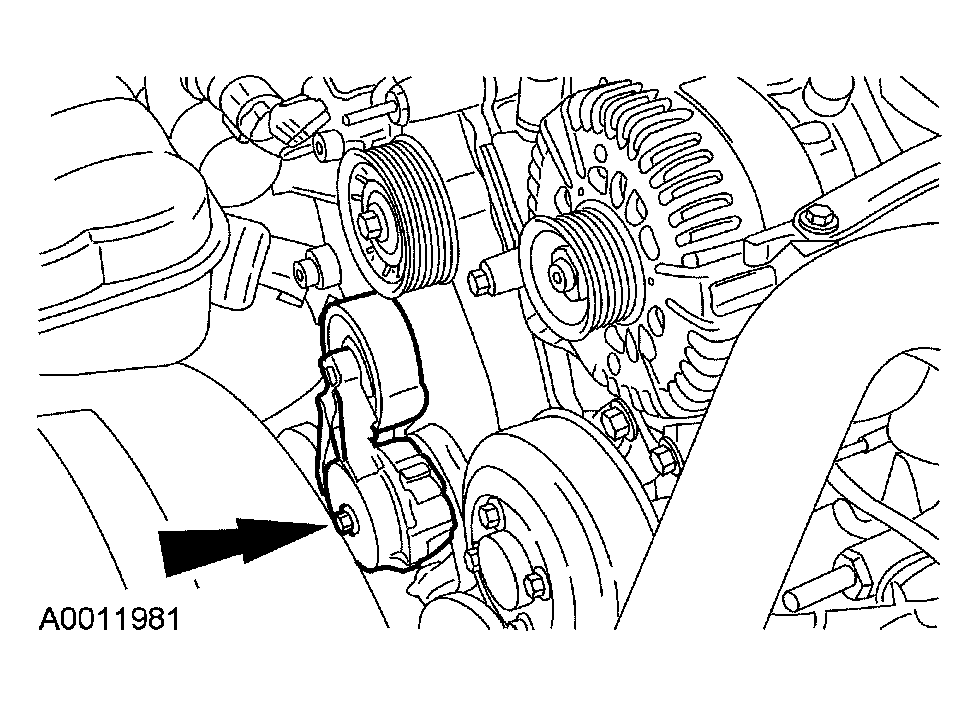

  Fig 1: Identifying Accessory Drive Belt Tensioner
  Courtesy of FORD MOTOR CO.
Install the accessory drive belt. For additional information, refer to ACCESSORY DRIVE BELT .
