Removal and Installation

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory drive belt. For additional information, refer to ACCESSORY DRIVE BELT .
  2. Remove the bolt and the accessory drive belt idler pulley.
    • To install, tighten to 25 Nm (18 lb-ft).

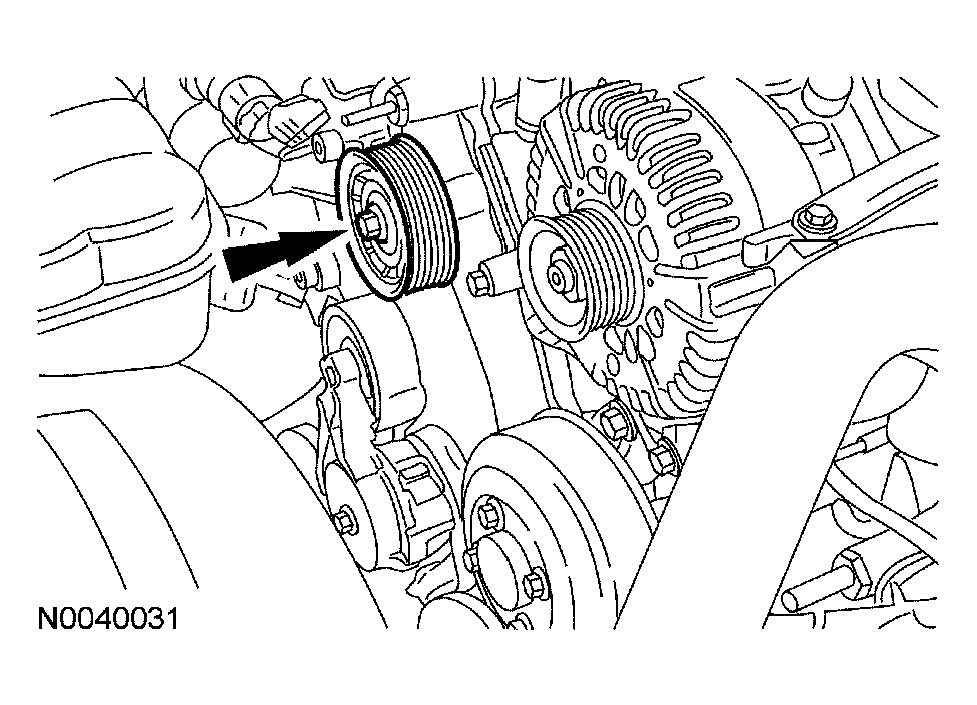

      Fig 1: Identifying Bolt And Accessory Drive Belt Idler Pulley
      G04584099Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
