Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

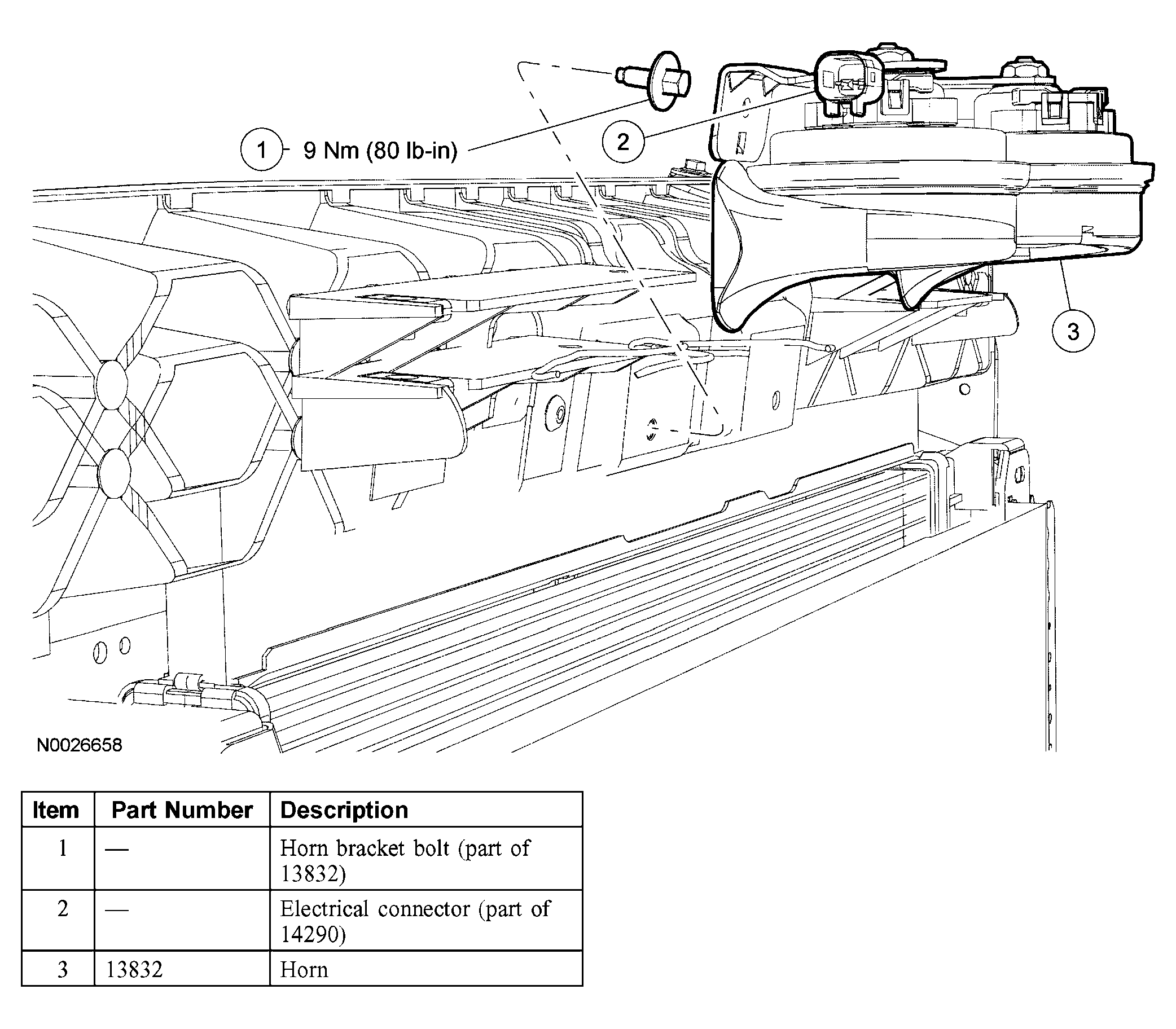

Fig 1: Removing/Installing Horn
G03992592Courtesy of FORD MOTOR CO.

    Five Hundred, Montego

  1. Remove the radiator grille opening panel.
    1. Remove the 2 push-pin retainers.
    2. Remove the 2 bolts and the radiator grille opening panel.
      • To install, tighten to 7 Nm (62 lb-in).

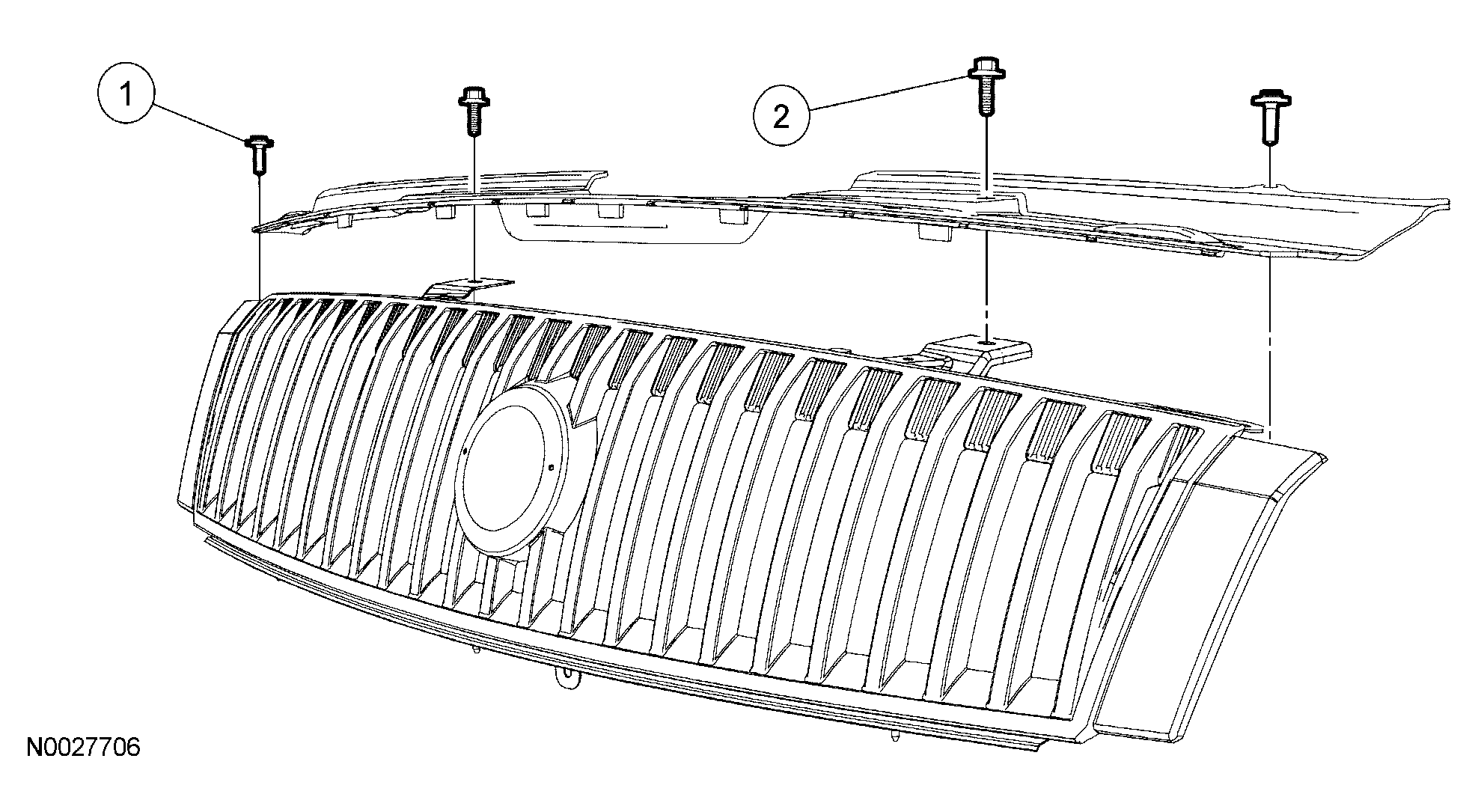

        Fig 2: Removing Radiator Grille Opening Panel
        G03992593Courtesy of FORD MOTOR CO.

    2. Freestyle

  2. Remove the radiator grille. For additional information, refer to EXTERIOR TRIM AND ORNAMENTATION .

    3. All vehicles

    NOTE: The horn and bracket are installed as an assembly.
  3. Remove the bolt and the horn.
    • Disconnect the electrical connector.
    • To install, tighten to 9 Nm (80 lb-in).
  4. To install, reverse the removal procedure.
