Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

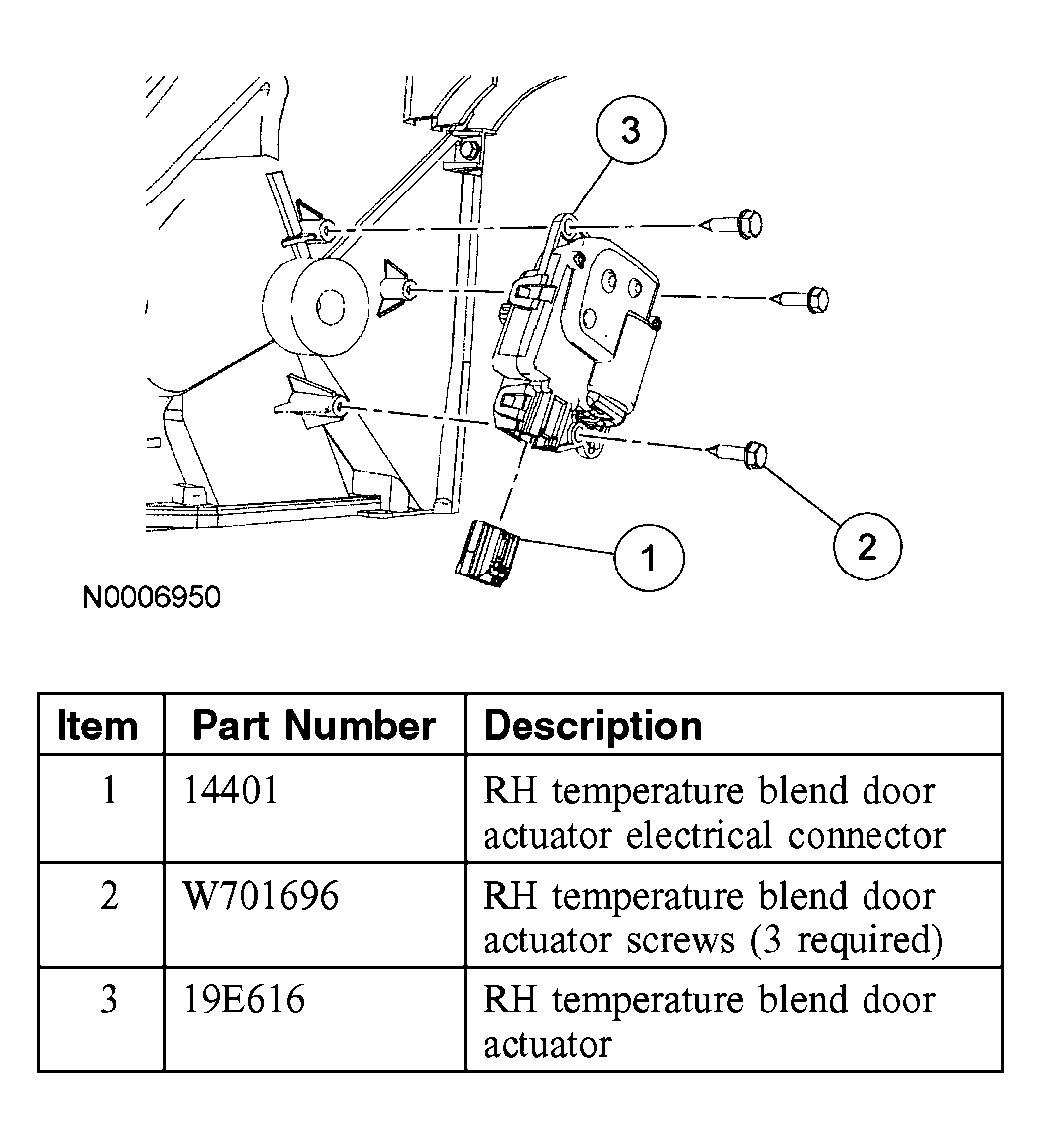

Fig 1: Removing/Installing Temperature Blend Door Actuator - RH
G03992490Courtesy of FORD MOTOR CO.
  1. Lower the glove compartment.
  2. Remove the 3 RH temperature blend door actuator screws.
  3. Disconnect the RH temperature blend door actuator electrical connector.
  4. Remove the RH temperature blend door actuator.
  5. To install, reverse the removal procedure.
