Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

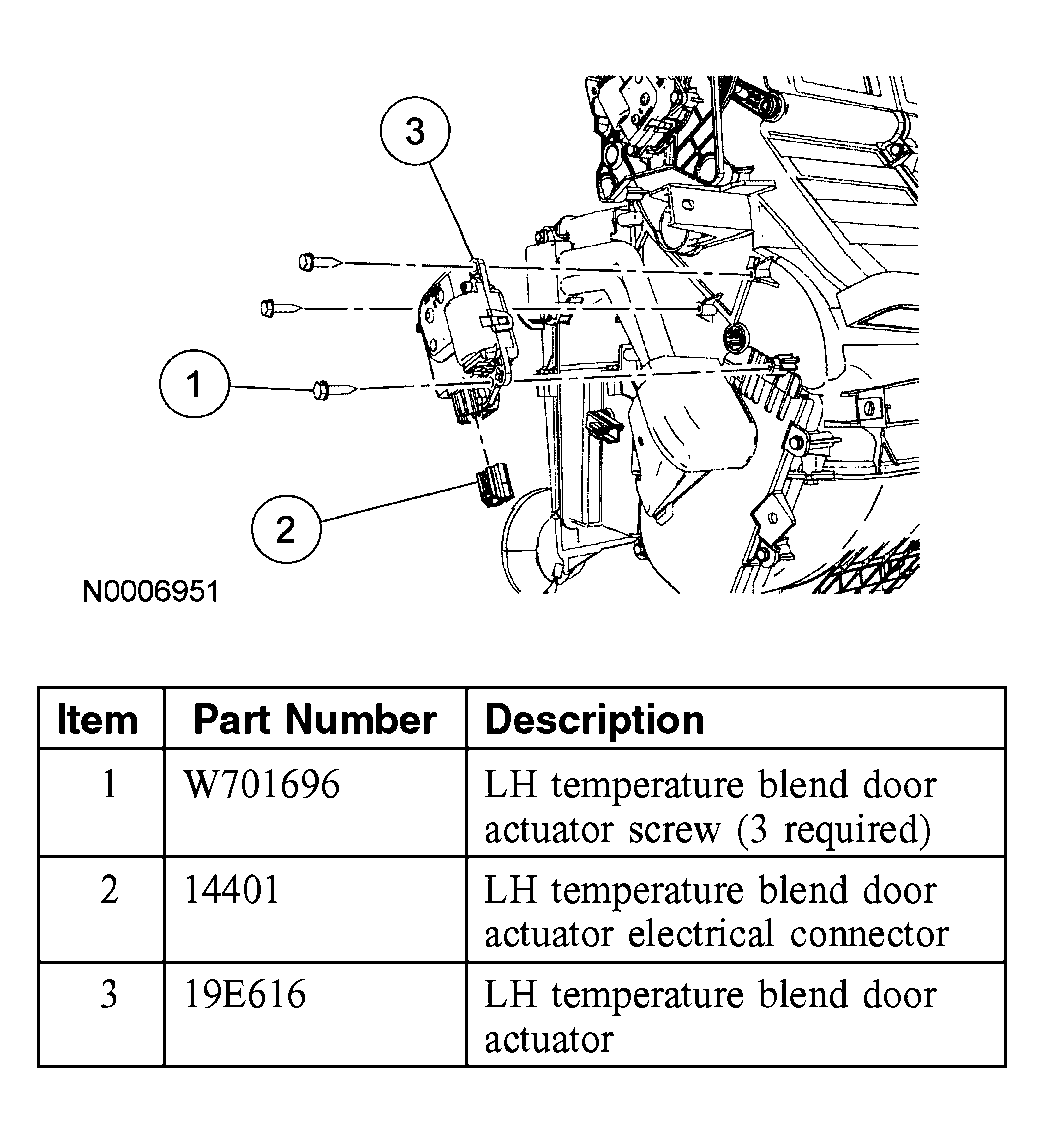

Fig 1: Removing/Installing Temperature Blend Door Actuator - LH
G03992491Courtesy of FORD MOTOR CO.
NOTE: The LH temperature blend door actuator can be accessed from below the LH side of the instrument panel.
  1. Remove the 3 LH temperature blend door actuator screws.
  2. Disconnect the LH temperature blend door actuator.
  3. Remove the LH temperature blend door actuator.
  4. To install, reverse the removal procedure.
