Removal and Installation

WARNING: This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

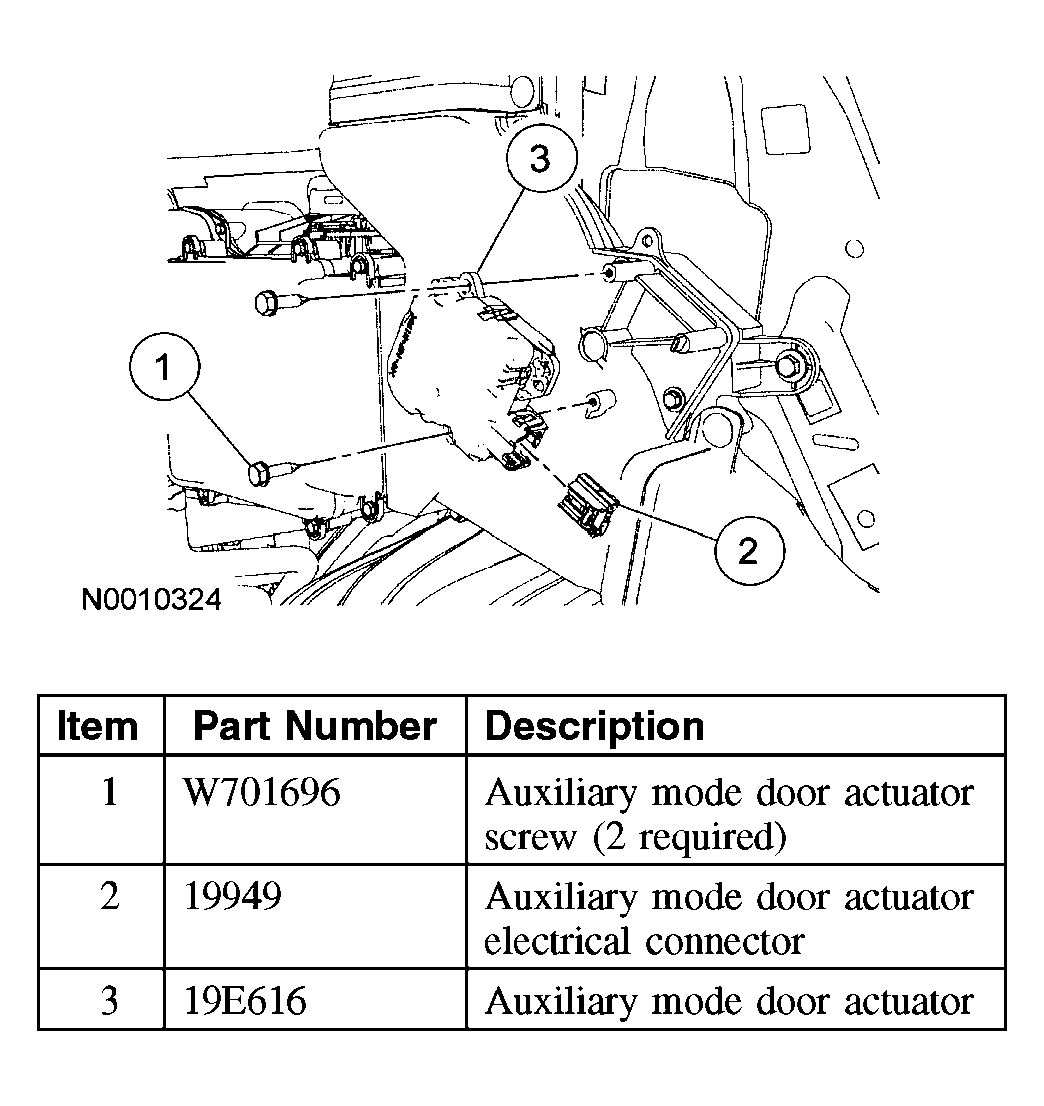

Fig 1: Removing/Installing Auxiliary Mode Door Actuator
G03992485Courtesy of FORD MOTOR CO.
  1. Remove the LH quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Disconnect the auxiliary mode door actuator electrical connector.
  3. Remove the 2 auxiliary mode door actuator screws.
  4. Remove the auxiliary mode door actuator.
  5. To install, reverse the removal procedure.
