Intake Manifold Runner Control Monitor (IMRCM) Sensor Connector

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

For most vehicles the IMRCM is integrated into the IMRC connector.

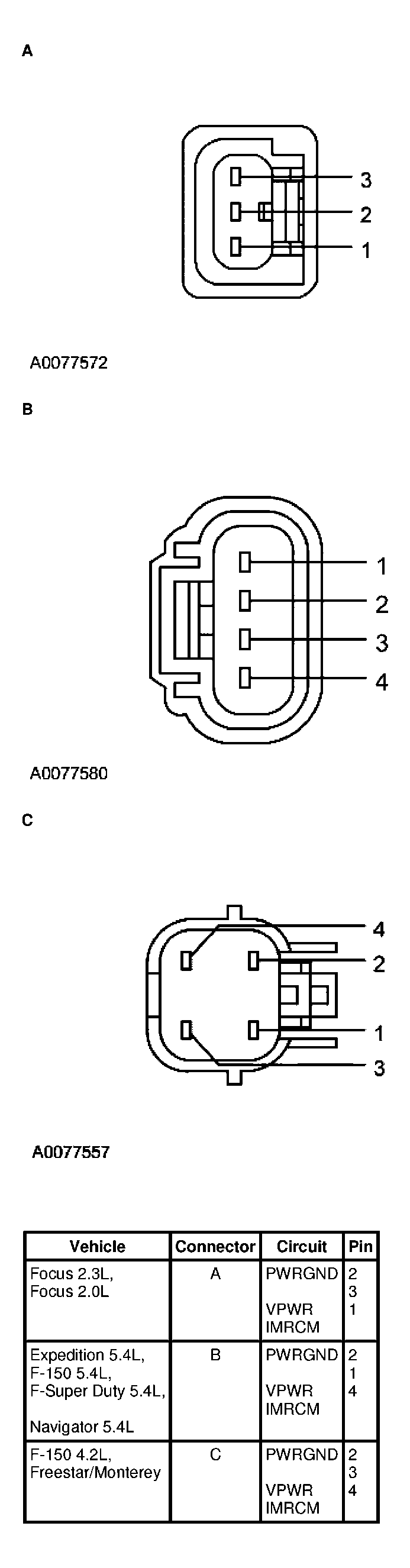

Fig 1: Intake Manifold Runner Control Monitor (IMRCM) Sensor Connector
G03878111Courtesy of FORD MOTOR CO.
Fig 2: Intake Manifold Tuning Valve (IMTV) Actuator Connector
G03878112Courtesy of FORD MOTOR CO.

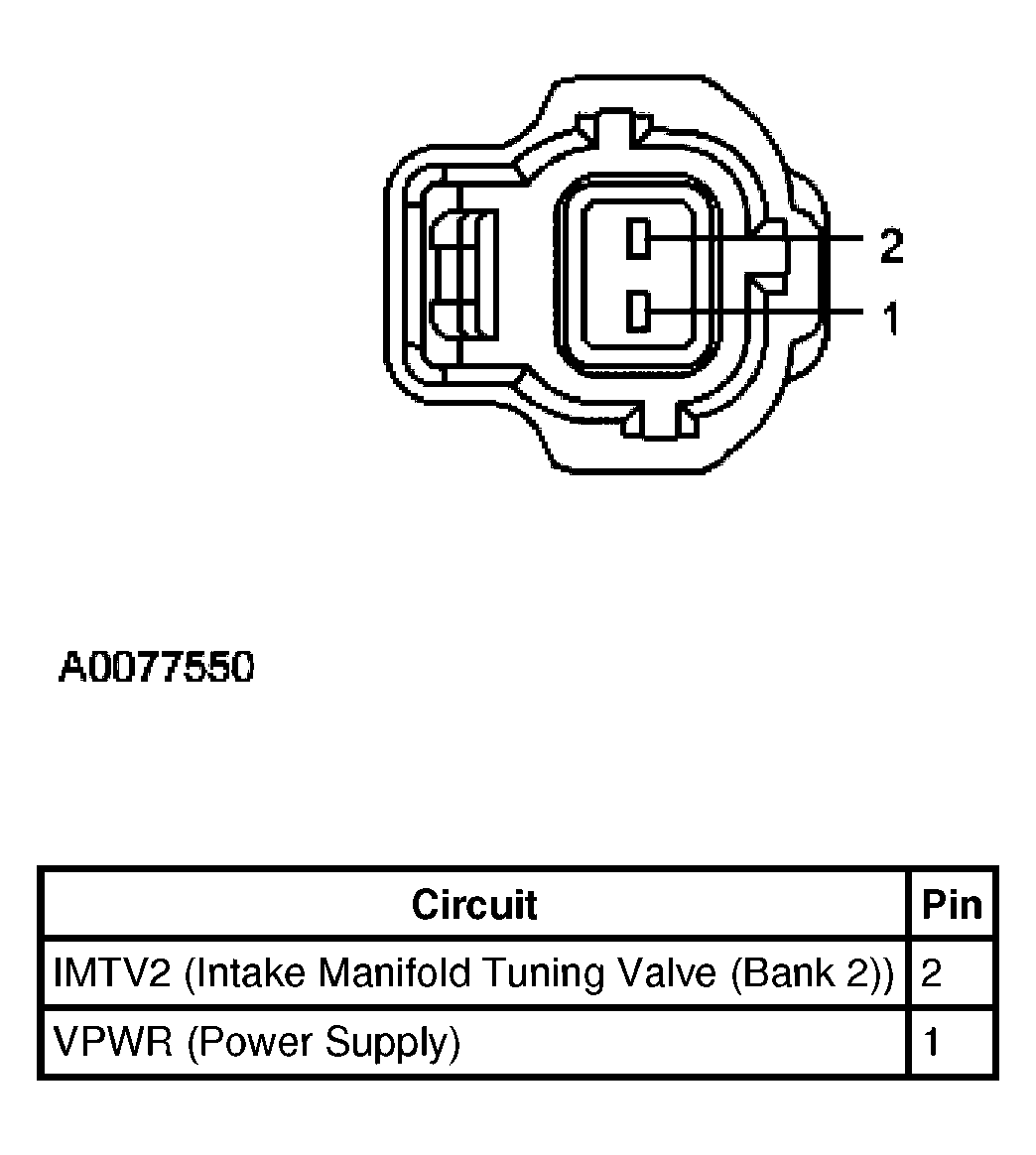

Fig 3: Intake Manifold Tuning Valve (Bank 2) (IMTV2) Actuator Connector
G03878113Courtesy of FORD MOTOR CO.
