Powertrain Control Module (PCM) Connector
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

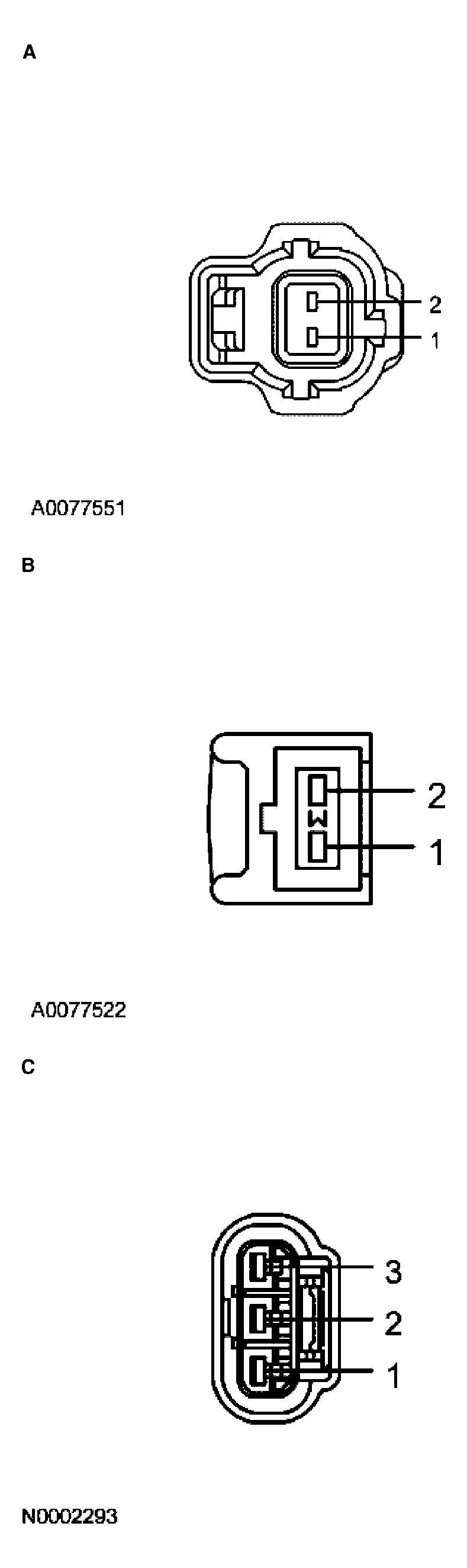

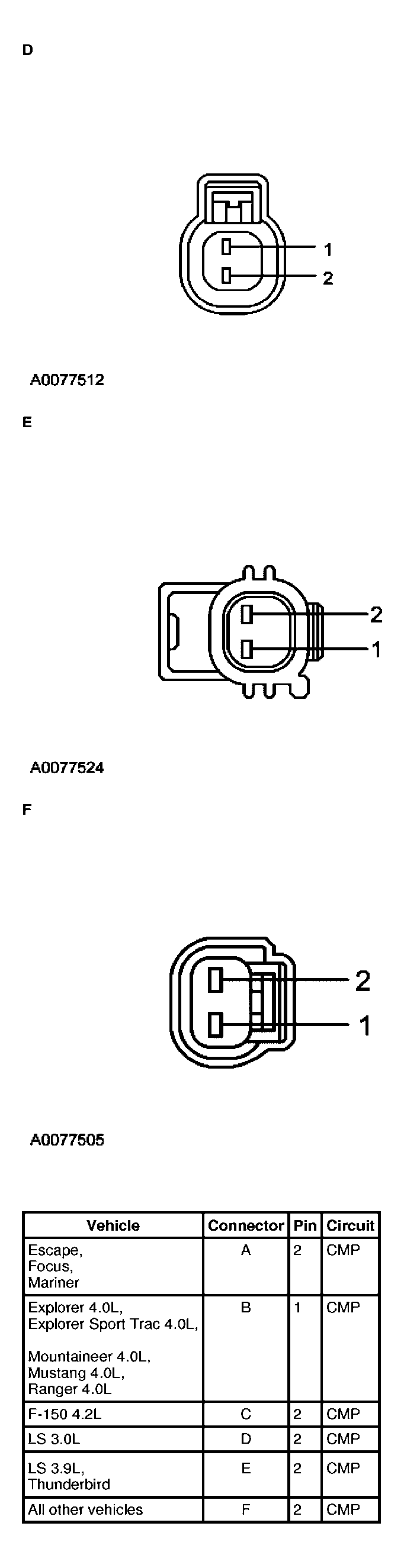

For PCM connector views or reference values, refer to REFERENCE VALUES - GASOLINE MODELS .
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Aviator, | 150 (60-32-58) Pin | E53 | CMP |
| LS, | B32, B33 | VPWR | |
| Thunderbird | |||
| E-Series 4.6L, | 170 Pin | E45 | CMP |
| E-Series 5.4L 4R75E, | B35, B36 | VPWR | |
| Mustang | |||
| E-Series 6.8L, | 170 Pin | E45 | CMP |
| E-Series 5.4L 5R100, | B35, B36, T39 | VPWR | |
| F-Super Duty | |||
| Excursion, | 104 Pin | 85 | CMP |
| Explorer Sport Trac, | 71, 97 | VPWR | |
| Freestar/Monterey, | |||
| Ford GT, | |||
| Ranger, | |||
| Sable, | |||
| Taurus | |||
| Expedition, | 190 Pin | E45 | CMP |
| F-150, | B51, B52, B53 | VPWR | |
| Navigator | |||
| All other vehicles | 150 (50-50-50) Pin | E25 | CMP |
| B35, B36 | VPWR |
