Pinpoint Test DX: Engine Coolant Temperature (ECT) Sensor: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2005 Mercury Sable, 2005 Mercury Mountaineer, 2005 Mercury Monterey, 2005 Mercury Montego, and 2005 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:
- Engine coolant temperature (ECT) sensor (12A648).

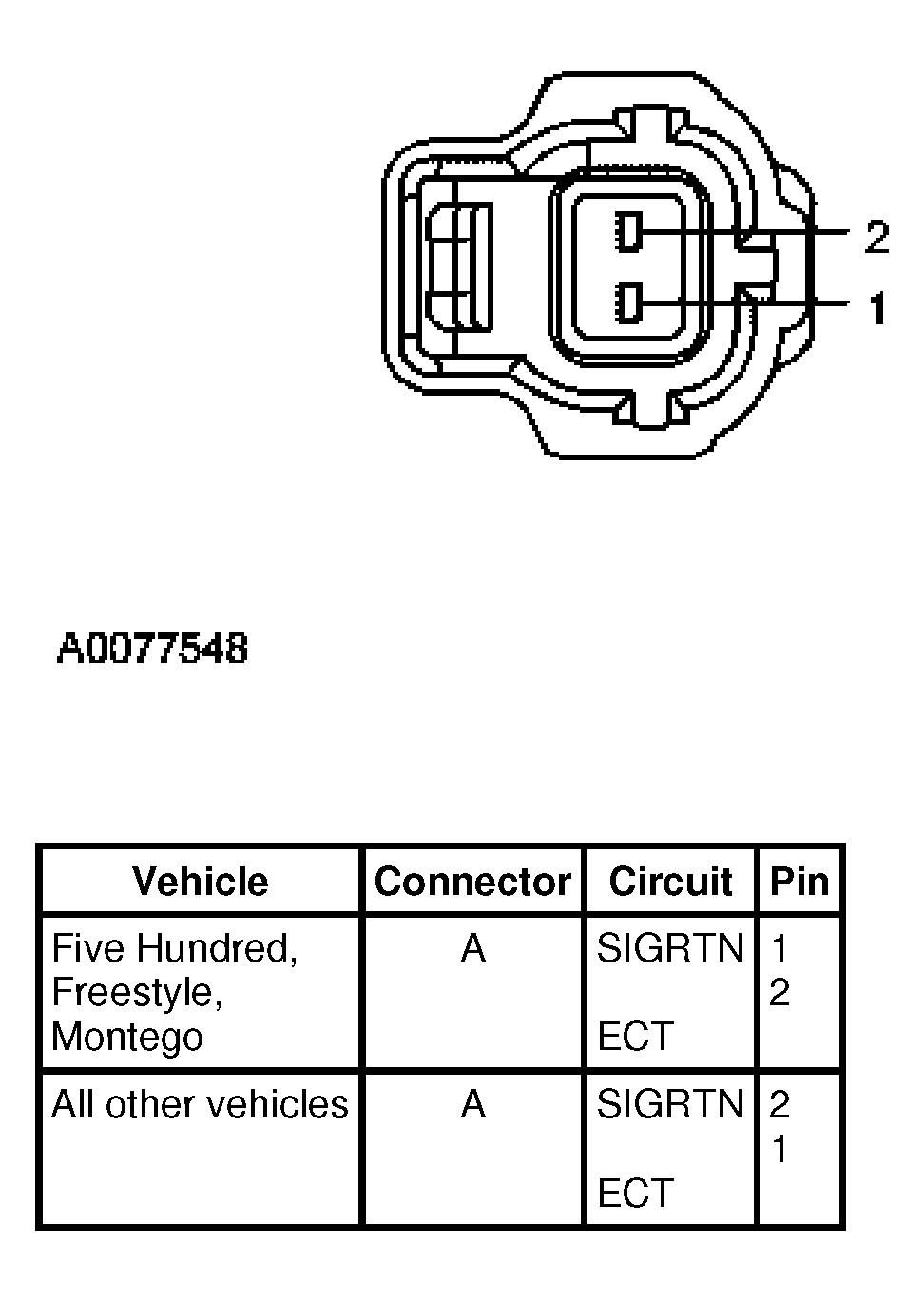

- Harness circuits: ECT and SIGRTN.
- Powertrain control module (PCM) (12A650).
Engine coolant temperature must be greater than 10°C (50°F) to pass the KOEO self-test and greater than 82°C (180°F) to pass the KOER self-test. To accomplish this, the engine must be at normal operating temperature.
Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.
TEMPERATURE SENSOR VOLTAGE AND RESISTANCE SPECIFICATIONS
| Temperature | Temperature Sensor Values | ||
|---|---|---|---|
| °C | °F | Voltage | Resistance (K ohms) |
| 120 | 248 | 0.28 | 1.18 |
| 110 | 230 | 0.36 | 1.55 |
| 100 | 212 | 0.47 | 2.07 |
| 90 | 194 | 0.61 | 2.80 |
| 80 | 176 | 0.80 | 3.84 |
| 70 | 158 | 1.05 | 5.37 |
| 60 | 140 | 1.37 | 7.70 |
| 50 | 122 | 1.77 | 10.97 |
| 40 | 104 | 2.23 | 16.15 |
| 30 | 86 | 2.74 | 24.27 |
| 20 | 68 | 3.26 | 37.30 |
| 10 | 50 | 3.73 | 58.75 |
| 0 | 32 | 4.14 | 95.85 |
| -10 | 14 | 4.45 | 160.31 |
