Positive Crankcase Ventilation (PCV) Connector

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

Electrically Heated PCV

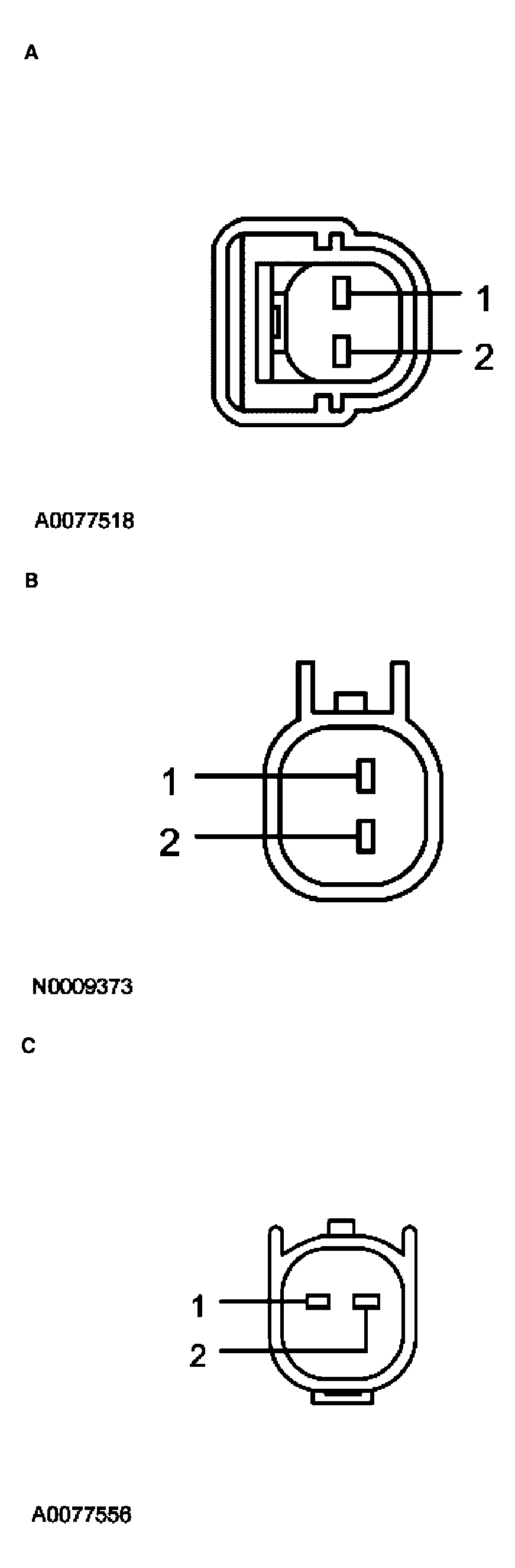

Fig 1: Positive Crankcase Ventilation (PCV) Connector (1 Of 2)
G04587214Courtesy of FORD MOTOR CO.
Fig 2: Positive Crankcase Ventilation (PCV) Connector (2 Of 2)
G04587215Courtesy of FORD MOTOR CO.
Fig 3: Positive Crankcase Ventilation Thermal Extension - Harness Side (PCVTE-Harness Side)
G04587216Courtesy of FORD MOTOR CO.
