Pinpoint Test Dm: Manifold Absolute Pressure (Map) Sensor: Introduction: Notes

WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.

This pinpoint test is intended to diagnose the following:

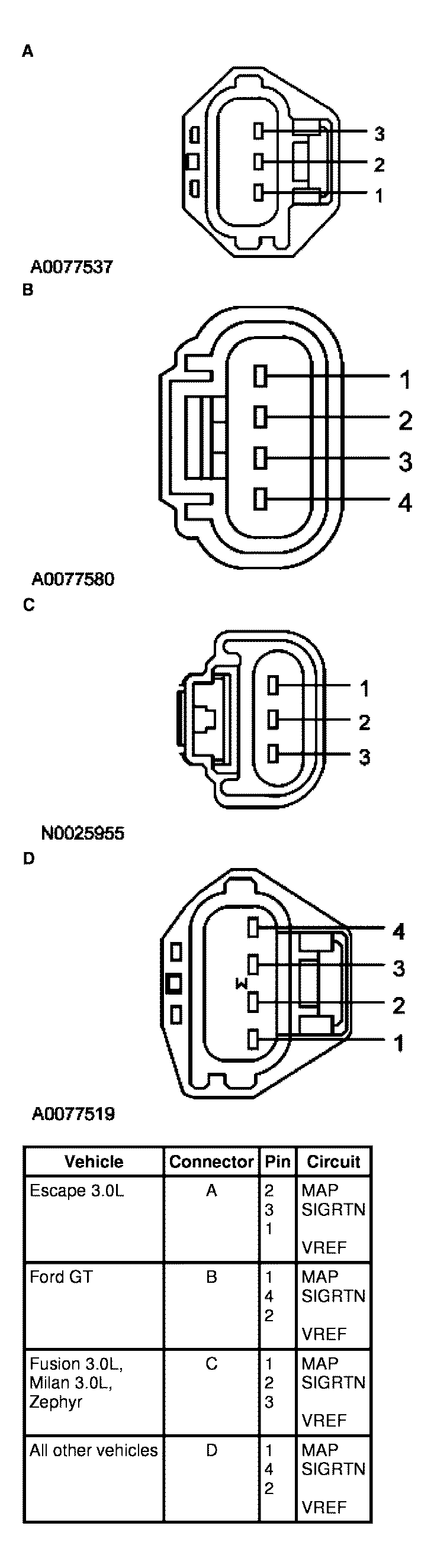

Fig 1: Manifold Absolute Pressure (MAP) Sensor Connector
G04587173Courtesy of FORD MOTOR CO.
Fig 2: EGR System Module (ESM) Connector
G04587174Courtesy of FORD MOTOR CO.
