Pinpoint Test DU: Intake Air Temperature 2 (IAT2) Sensor: Introduction: Notes
WARNING: This page does not describe the selected car, but rather 30 other vehicles, including the 2006 Mercury Mountaineer, 2006 Mercury Monterey, 2006 Mercury Montego, 2006 Mercury Milan, and 2006 Mercury Mariner. However, it is still accessible from the selected car via links, so may be relevant.
This pinpoint test is intended to diagnose the following:

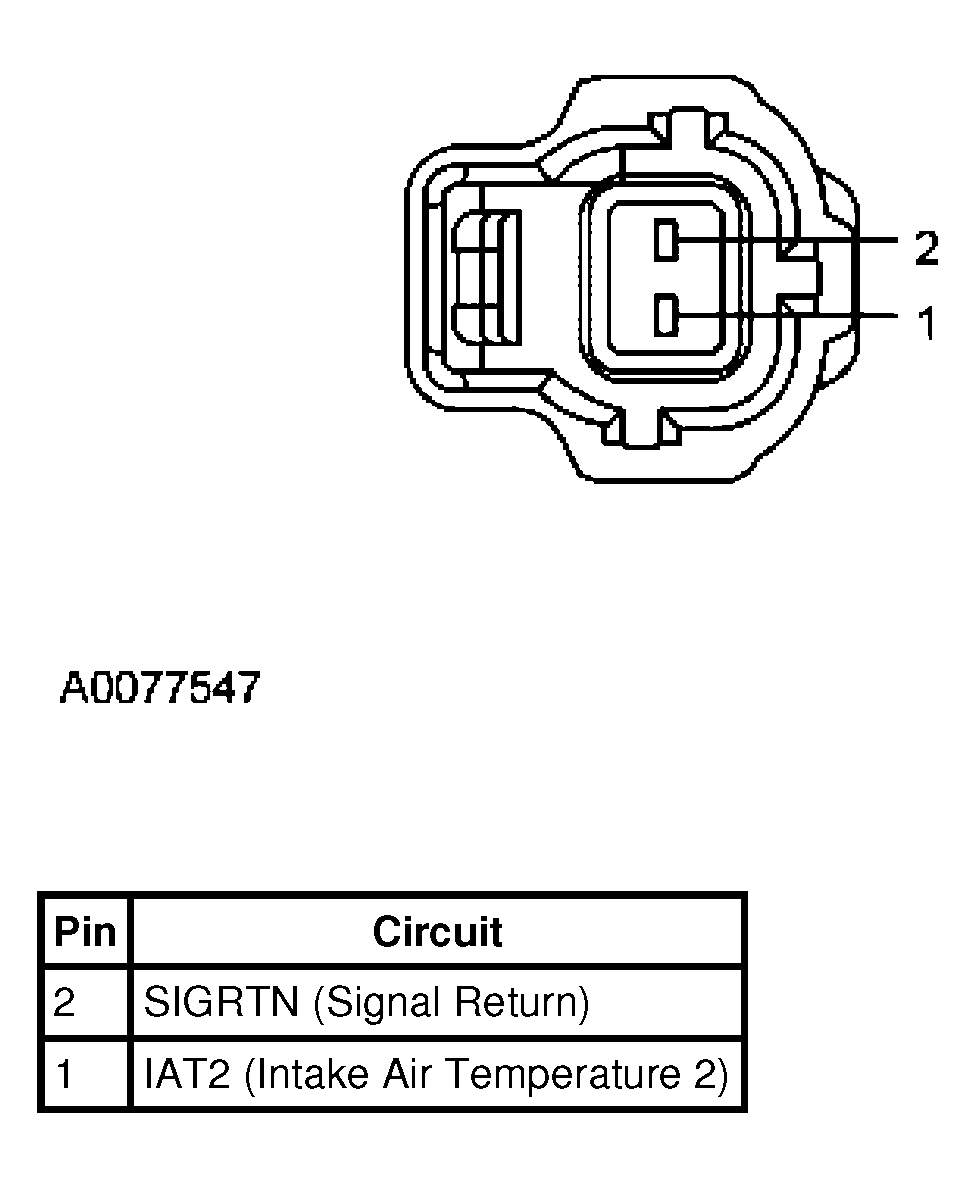

- intake air temperature 2 (IAT2) sensor (12A697)
- harness circuits: IAT2 and SIGRTN
- powertrain control module (PCM) (12A650)
Voltage values calculated for VREF = 5 volts. These values can vary by 15% due to sensor and VREF variations.
TEMPERATURE SENSOR VOLTAGE AND RESISTANCE SPECIFICATIONS
| Temperature | Temperature Sensor Values | ||
|---|---|---|---|
| °C | °F | Voltage | Resistance (K ohms) |
| 120 | 248 | 0.28 | 1.18 |
| 110 | 230 | 0.36 | 1.55 |
| 100 | 212 | 0.47 | 2.07 |
| 90 | 194 | 0.61 | 2.80 |
| 80 | 176 | 0.80 | 3.84 |
| 70 | 158 | 1.05 | 5.37 |
| 60 | 140 | 1.37 | 7.70 |
| 50 | 122 | 1.77 | 10.97 |
| 40 | 104 | 2.23 | 16.15 |
| 30 | 86 | 2.74 | 24.27 |
| 20 | 68 | 3.26 | 37.30 |
| 10 | 50 | 3.73 | 58.75 |
| 0 | 32 | 4.14 | 95.85 |
| -10 | 14 | 4.45 | 160.31 |
