Radiator Grille - MKZ: Notes
WARNING: This page is about a different car, the 2011 Mercury Milan, 2011 Lincoln MKZ, and 2011 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

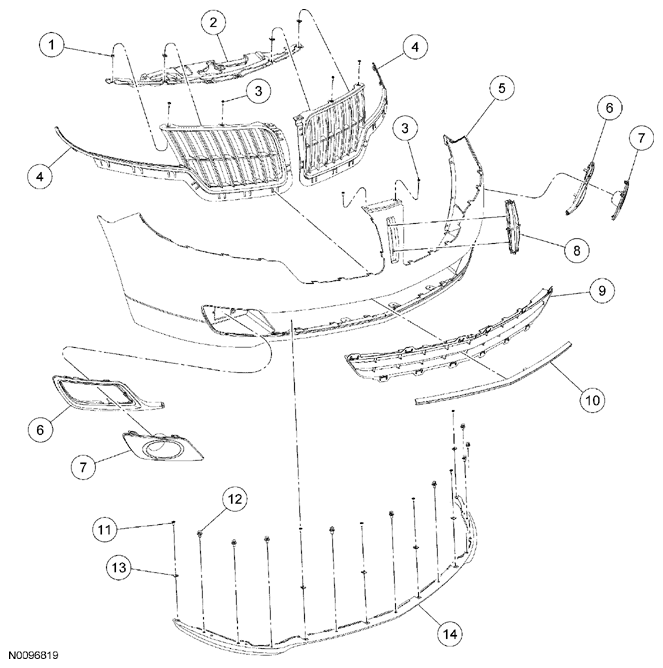

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | N802539 | Upper radiator air deflector J-clip (4 required) |
| 2 | 8A164 | Upper radiator air deflector |
| 3 | W706805 | Upper radiator grille screws (6 required) |
| 4 | 8150-B LH/8150-A RH | Upper radiator grille |
| 5 | 17C831 | Front bumper cover |
| 6 | 17K946-A LH/17K947-A RH | Fog lamp bezel trim |
| 7 | 17K946-B LH/17K947-B RH | Fog lamp bezels |
| 8 | 8B262 | Badge |
| 9 | 8150-C | Lower center radiator grille |
| 10 | 8150-D | Lower center radiator grille moulding |
| 11 | W706805 | Front bumper cover valance screw (6 required) |
| 12 | W711035 | Front bumper cover valance pin-type retainer (9 required) |
| 13 | N802539 | Front bumper cover valance J-clip (6 required) |
| 14 | 17B635 | Front bumper cover valance |
